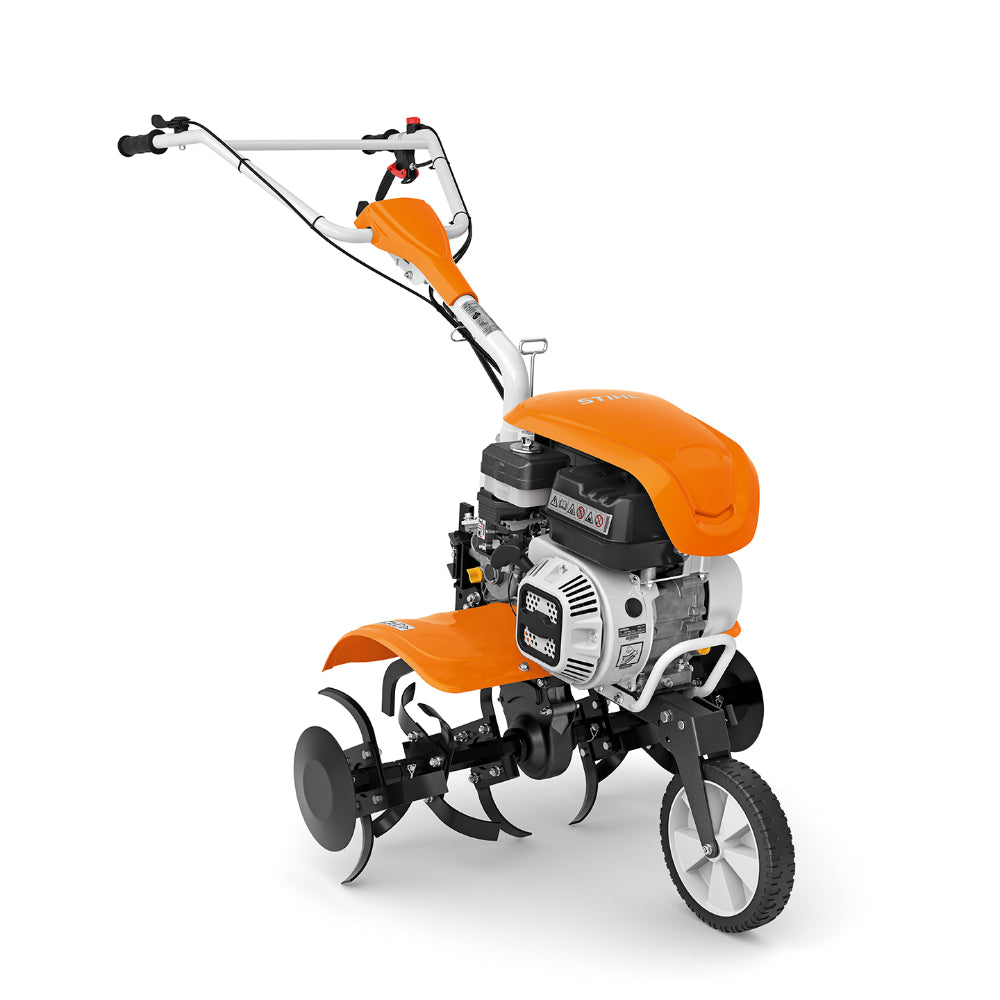

MH 610 Petrol Heavy Duty Power Weeder

Engine STIHL EHC 600.0 2-stroke petrol
Displacement 212 cc
Power Output 4.4 kW (6.0 PS) @ 3 600 rpm
Transmission 2 forward + 1 reverse gear
Working Width 78 cm (detachable hoe extension to 56 cm)
Hoe Set Diameter 31 cm
Fuel Tank Capacity 3.6 L
Weight (without fuel) 61 kg
Vibration Value (AHW) 6.9 m/s²
Sound Power Level 101 dB(A)
Handlebar Adjustment Vertical & lateral, tool-free
Transport Wheels Foldable for easy storage & movement
Brake Spur Height-adjustable for precise traction control
Throttle Control Thumb-operated lever on handle



SIMPLE THROTTLE ACTUATION

SIMPLE THROTTLE ACTUATION

PRECISE CONTROL OF ENGINE PERFORMANCE. Regulate the performance of your power tool during operation without releasing the handle. The throttle actuator is attached to the handle; this means you can operate it conveniently with your thumb, and precisely control the speed of the engine.



Transport wheels



Transport wheels

This STIHL tiller is fitted with a wheel axle at the rear for smooth transportation. The pair of wheels can be folded up during operation.



SHREDDER BLADES



SHREDDER BLADES

FOR VERY EFFICIENT DIGGING OVER. The shredder blades of the STIHL power tiller have a specially developed shape. This allows them to dig soil over very efficiently in an optimised process sequence.



DETACHABLE HOE SET



DETACHABLE HOE SET

EXTEND THE WORKING WIDTH. The detachable hoe set allows you to extend the working width of your power tiller with additional hoeing tools. The distance between the hoe blades is fixed. Discs at the side also protect your cultivated plants and objects from damage while ploughing.



Swivelling brake spur



Swivelling brake spur

FACILITATES DIGGING OVER IN NARROW SPACES. The pivoting braking spur slows down the propulsion speed and increases the manoeuvrability of your power tiller. This makes it easier to dig ground over in tight spaces and curves. In addition, this slowing enables you to work more intensively with the hoe set. The captive brake spur is also easy to access and conveniently height-adjustable.

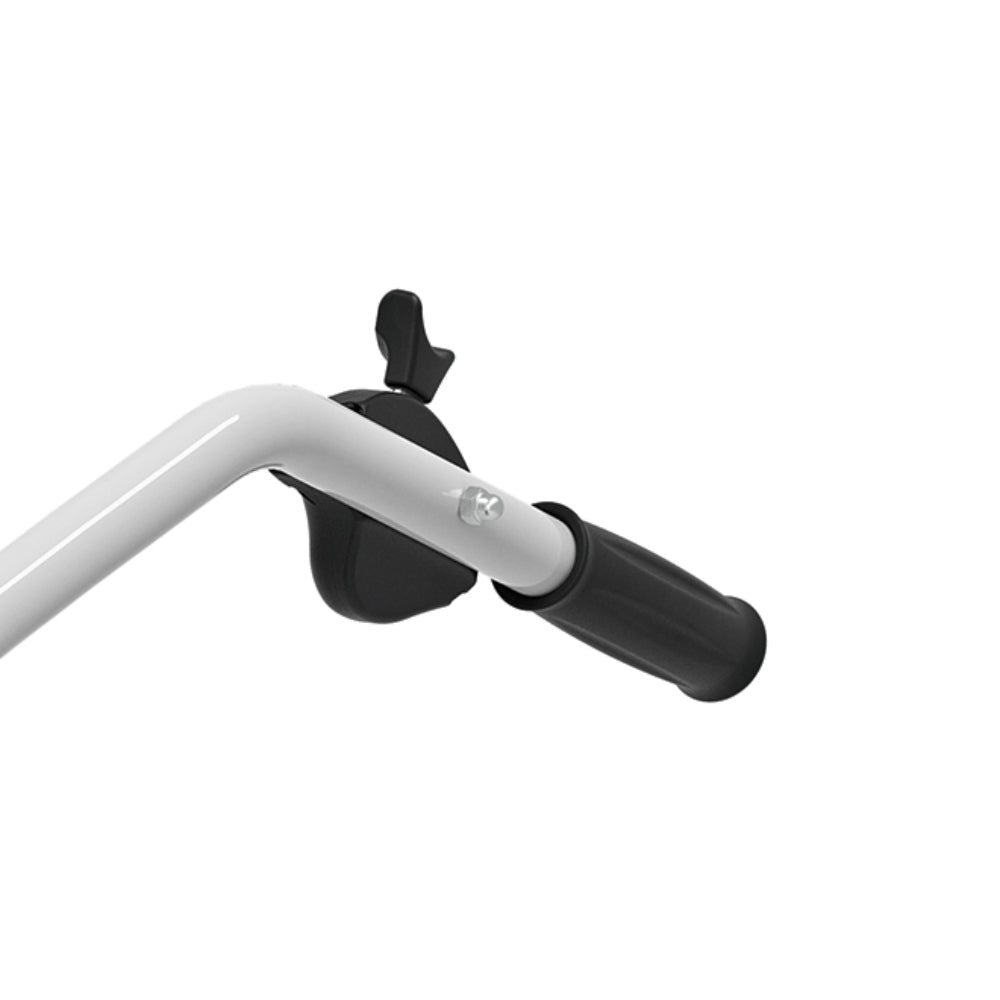

ADJUSTABLE BAR



ADJUSTABLE BAR

FOR HIGH WORKING COMFORT. The ergonomically shaped bar of your power tiller can be adjusted both vertically and laterally, without tools. This means that you can dig over soils with an ergonomic posture even on hard-to-access surfaces. To transport your power tiller easily or store it in a space-saving manner, simply fold down the bar.



Powerful engine



Powerful engine

This STIHL tiller is powered by an powerful engine. Characterised by a high degree of stability, the engine type is ideal for high-performance tilling work. It was designed as a drive motor with a horizontal shaft.

FAQs
