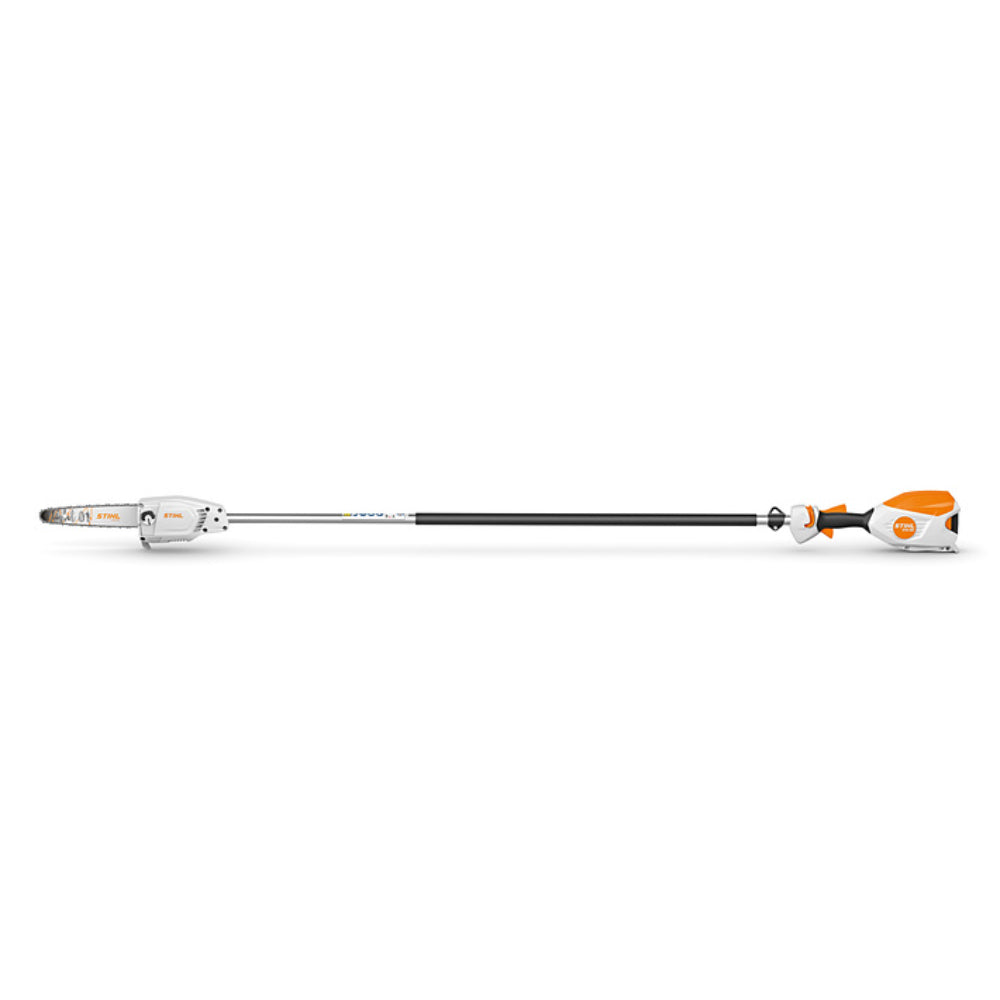

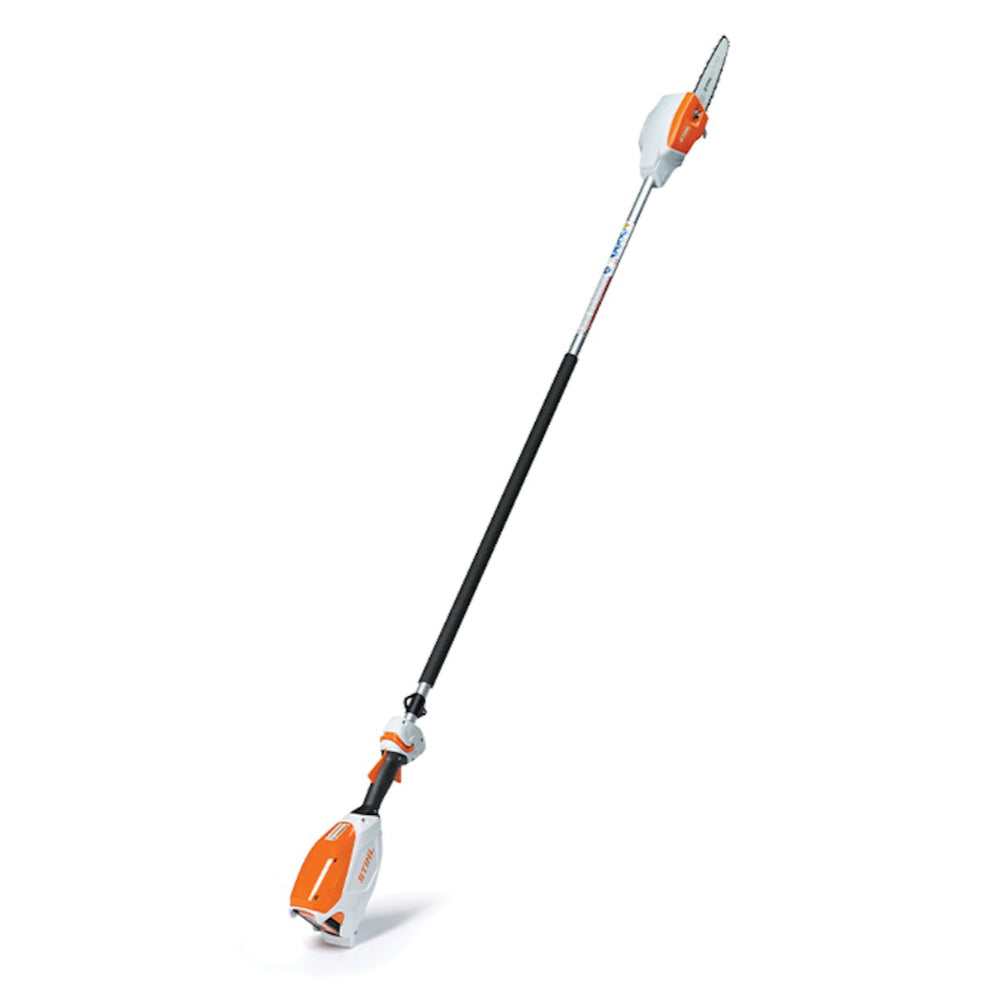

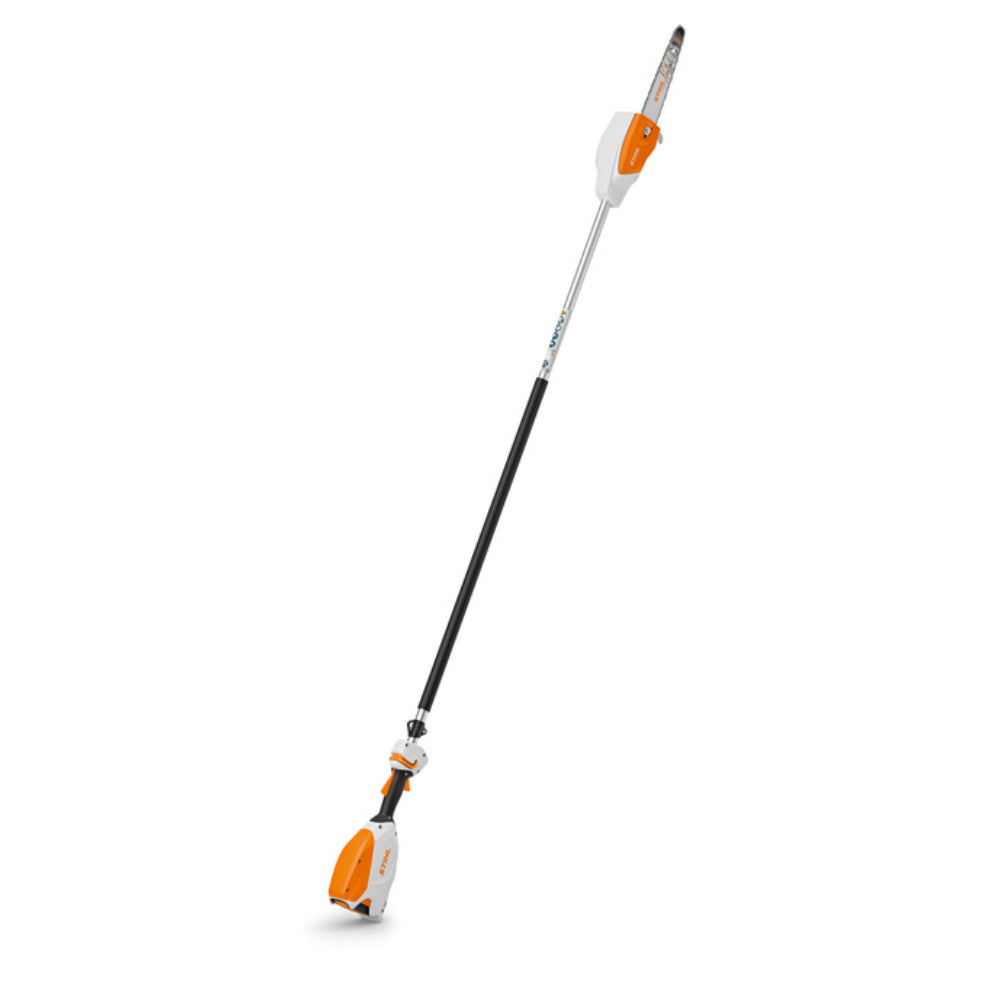

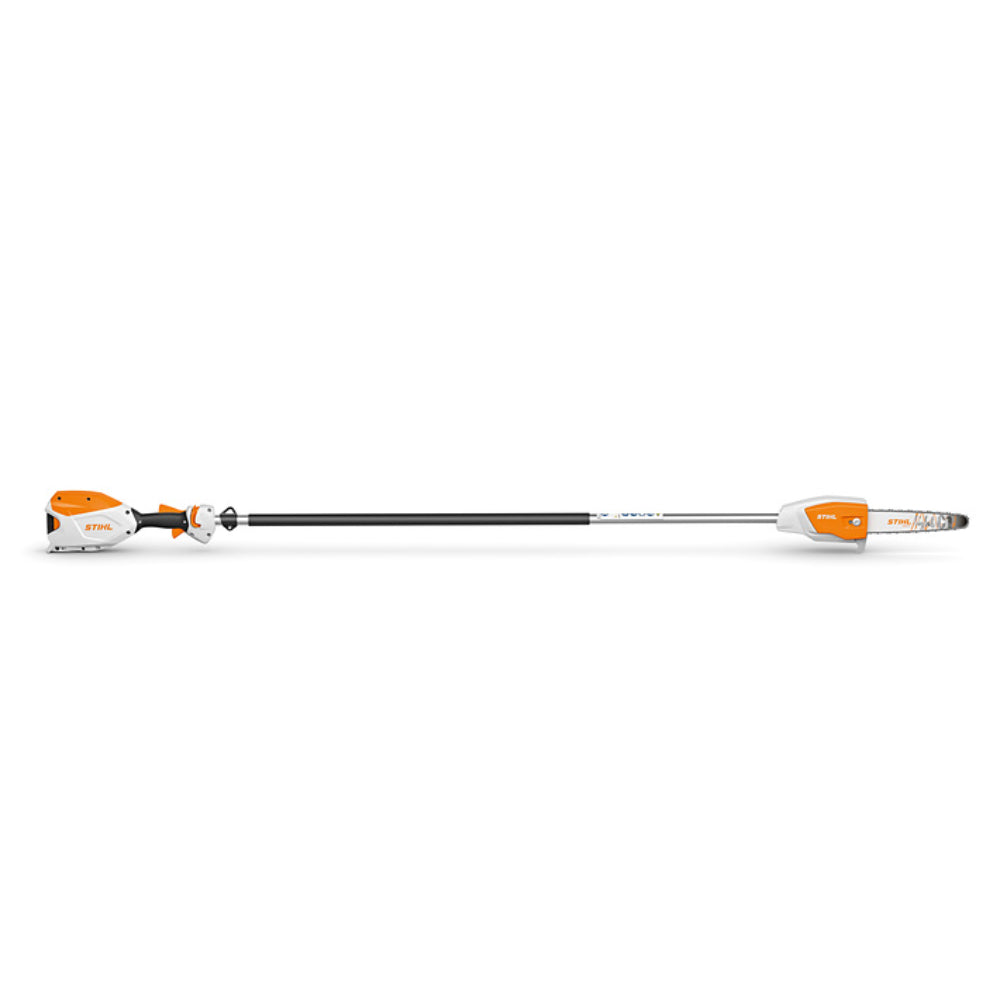

HTA 66 Battery Type Pole pruner with AP 300 battery and AL 300 charger

Feature Specification
Model Name STIHL HTA 66
Power Source 36 V Lithium‑Ion AP System (AP 300 battery)
Battery Energy Content 227 Wh
Charger Model STIHL AL 300 Quick Charger
Charging Time Approx. 80 minutes
Motor Type Brushless high‑torque electric motor
Guide Bar & Chain 8″ (20 cm) OILOMATIC® chain
Overall Length (telescopic) 240 – 370 cm
Weight (with AP 300) 4.2 kg
Sound Pressure Level 75 dB(A)
Sound Power Level 91 dB(A)
Vibration Level (L/R) 1.1 / 1.1 m/s²
Run Time (with AP 300) Up to 45 minutes

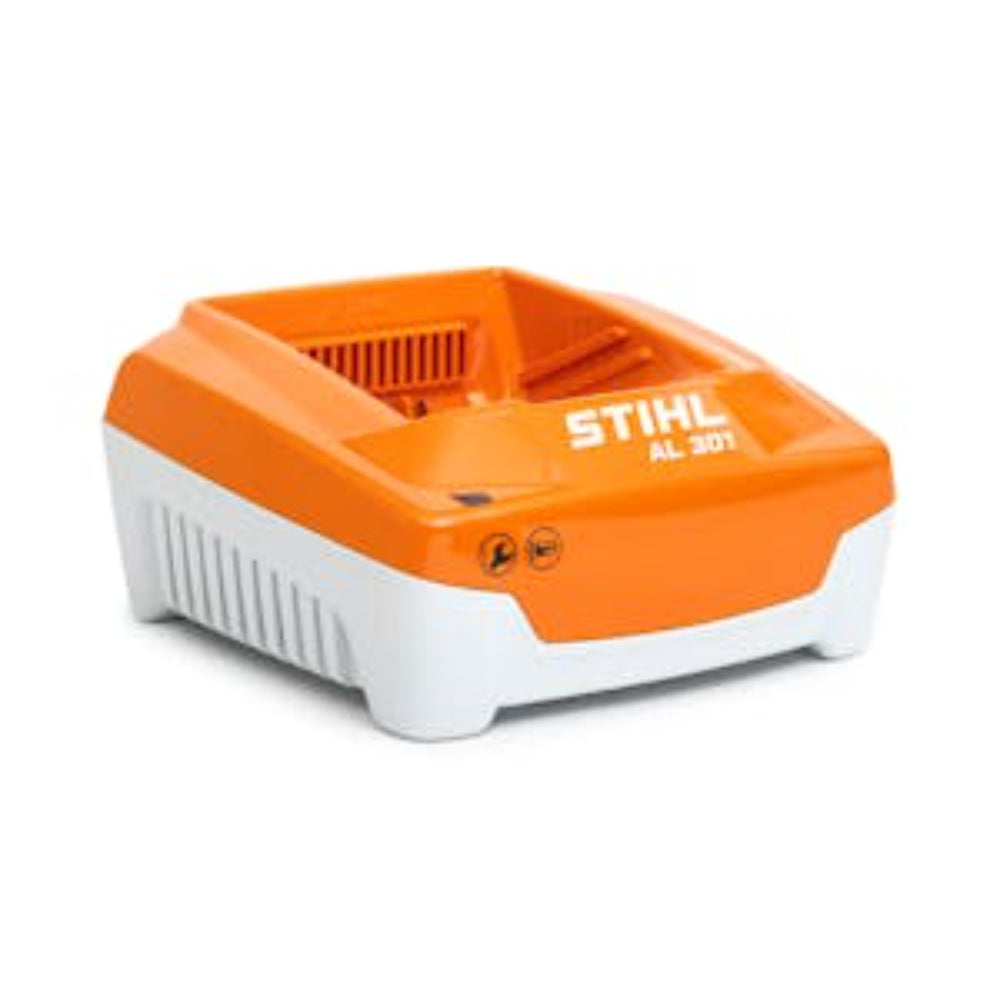

AL 300 quick Charger


AL 300 quick charger


AL 300 quick charger 230 V. For STIHL AP and AR batteries. Device in housing base for wall mounting and cable rewind, with operating mode indicator (LED) and active battery cooling



Rated voltage 220-240 V
Weight 1.2 kg
Rated current 2.3 A
Charging current 6.5 A
Weight 2.6 lbs
Power consumption 0.3 kW

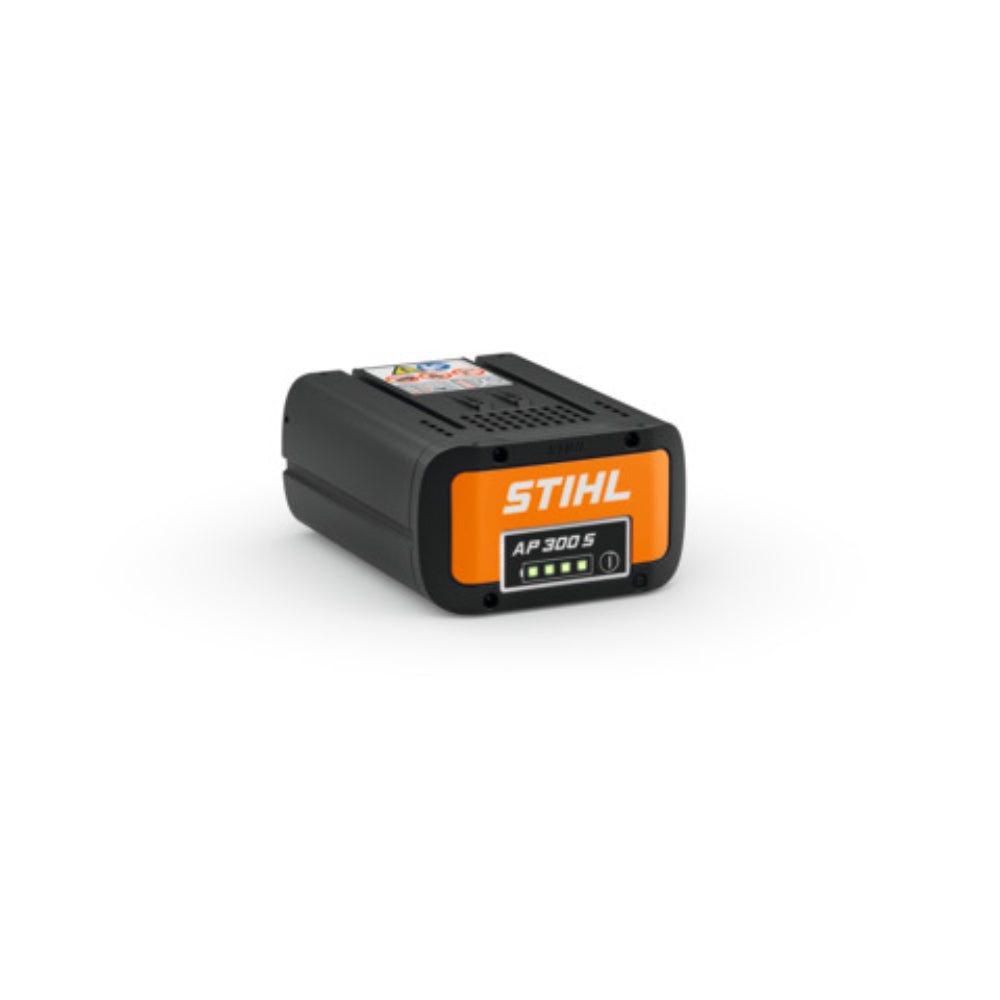

AP 300 Battery



AP 300

Very powerful lithium-ion batteries with charge level indicator (four LEDs). 227 Wh battery power.

Battery weight 1.8 kg
Rated voltage 36 V
Battery cell technology LITHIUM-ION
Battery energy content 227 W·h
