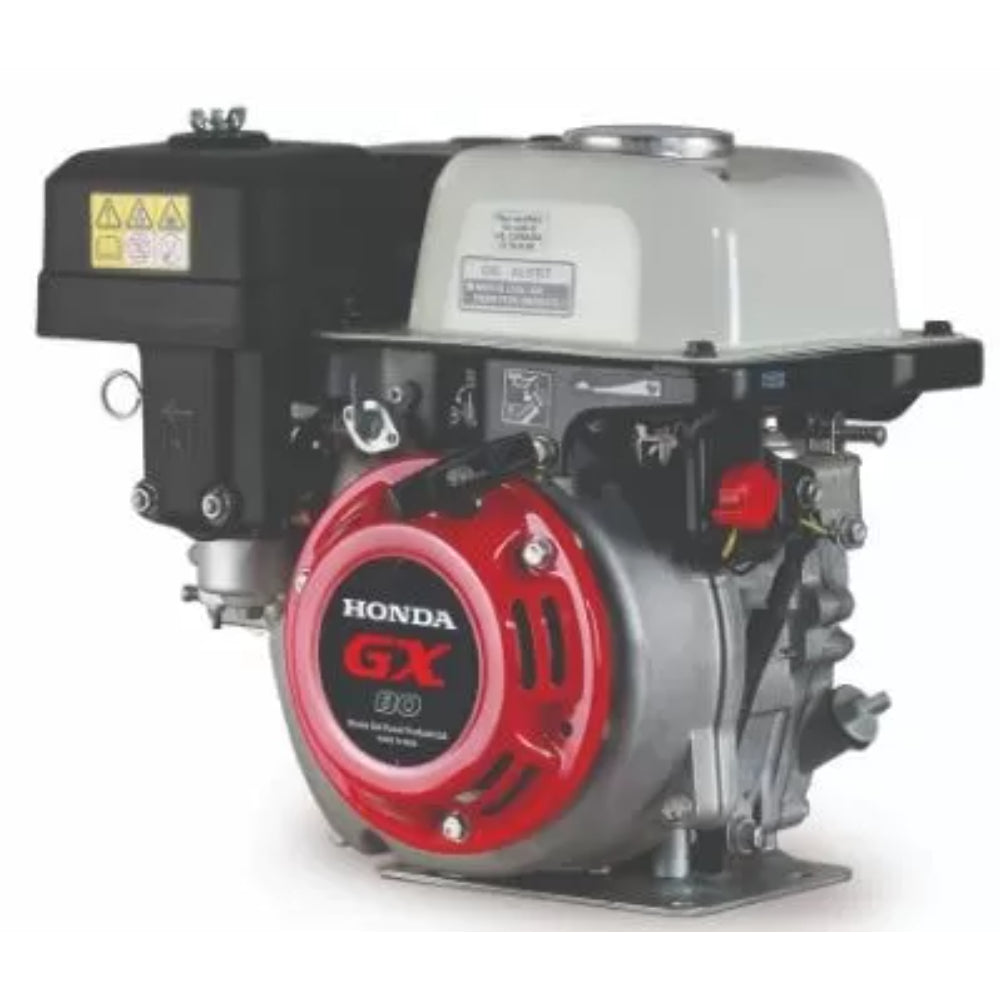

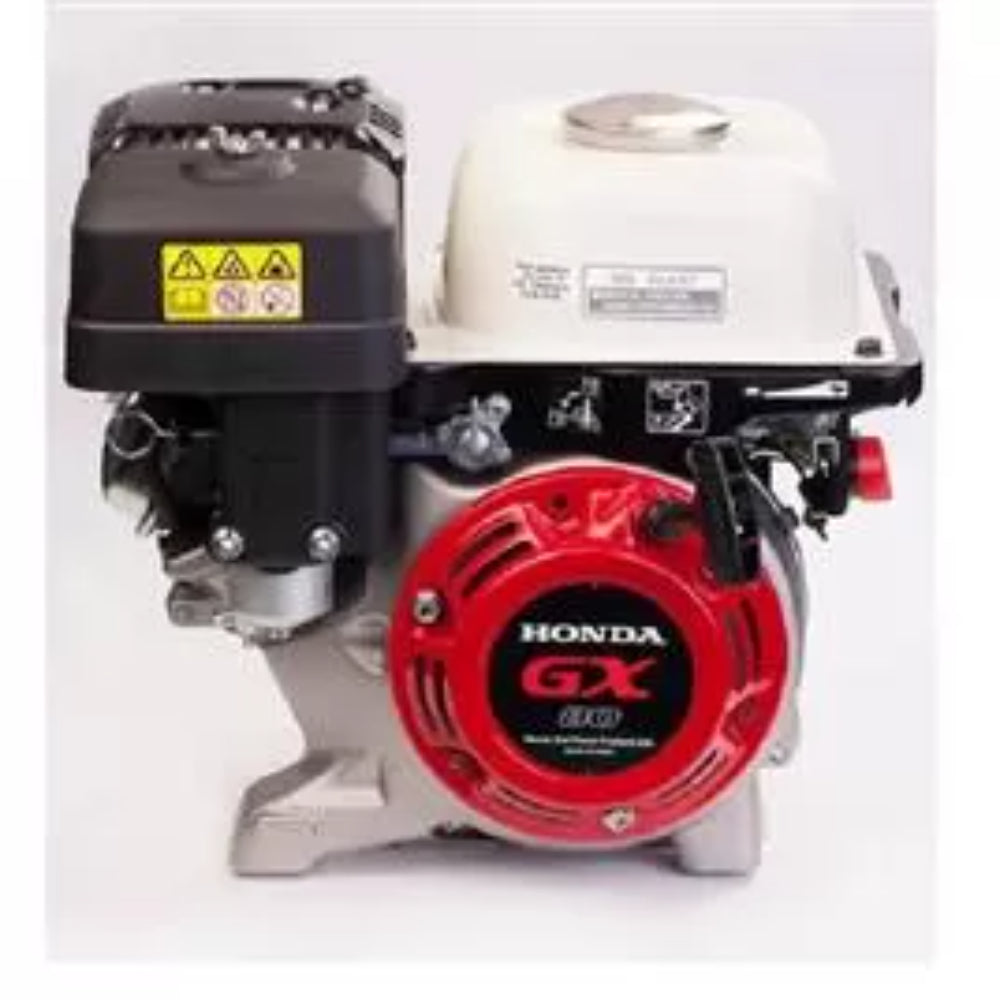

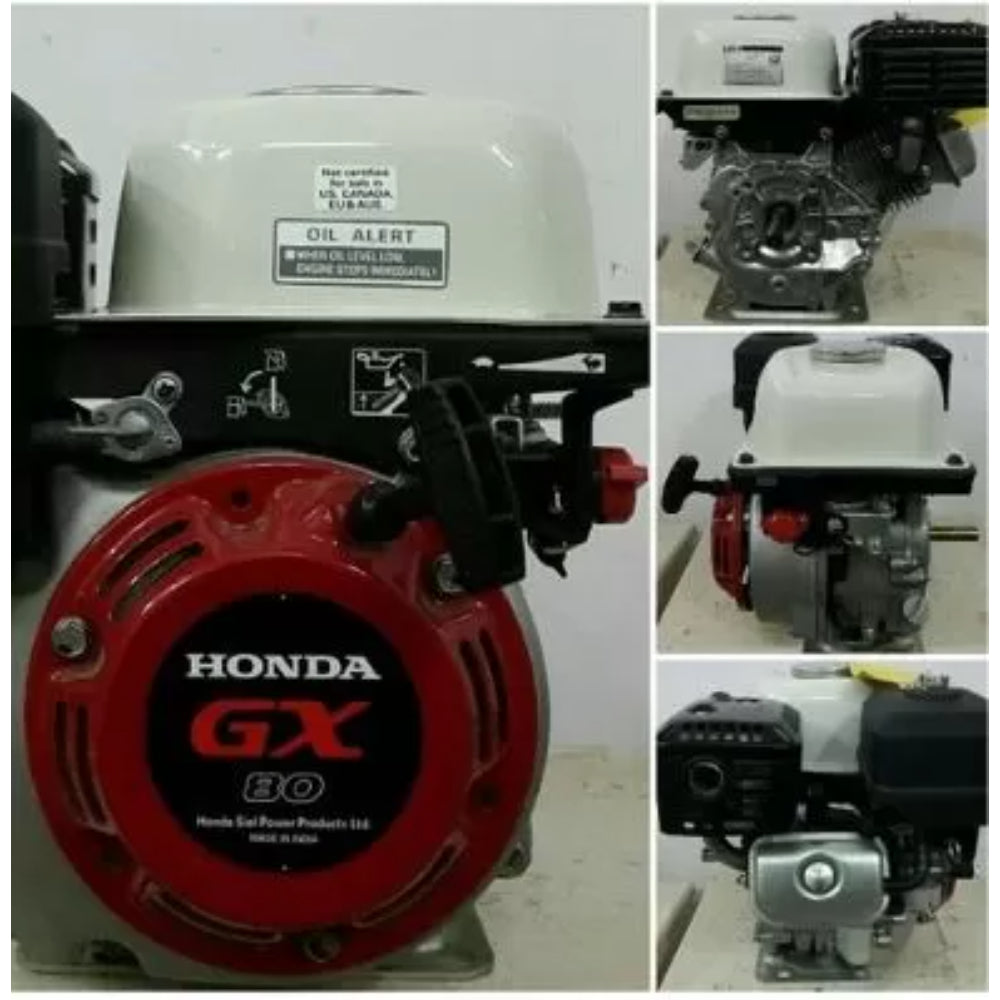

Honda Mid Series Engine GX 80

Engine

Engine

Bore X Stroke (mm) 46 x 48 mm
Compression ratio 9 : 1
Description Code 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft
Fuel Tank Capacity (L) 1.5 L
Ignition System Transistor Type Magneto Ignition
Net Power 1.5 kW ( 2 HP ) / 3600 rpm
Oil Capacity 0.36 L
Starting System Recoil (el. start optional)
Dry Weight(Kg) 11.1 kg
Displacement 79.7 cm3;
Cylinder sleeve type Cast iron sleeve
Dimensions (L x W x H) 275 x 342 x 323 mm
Fuel cons. at cont. rated power 0.6 L/h - 3600 rpm
Cont rated power 1.2 kW ( 1.6 HP ) / 3600 rpm
Max. net torque 4.5 N.m / (0.46 kgf.m / 2500 rpm
