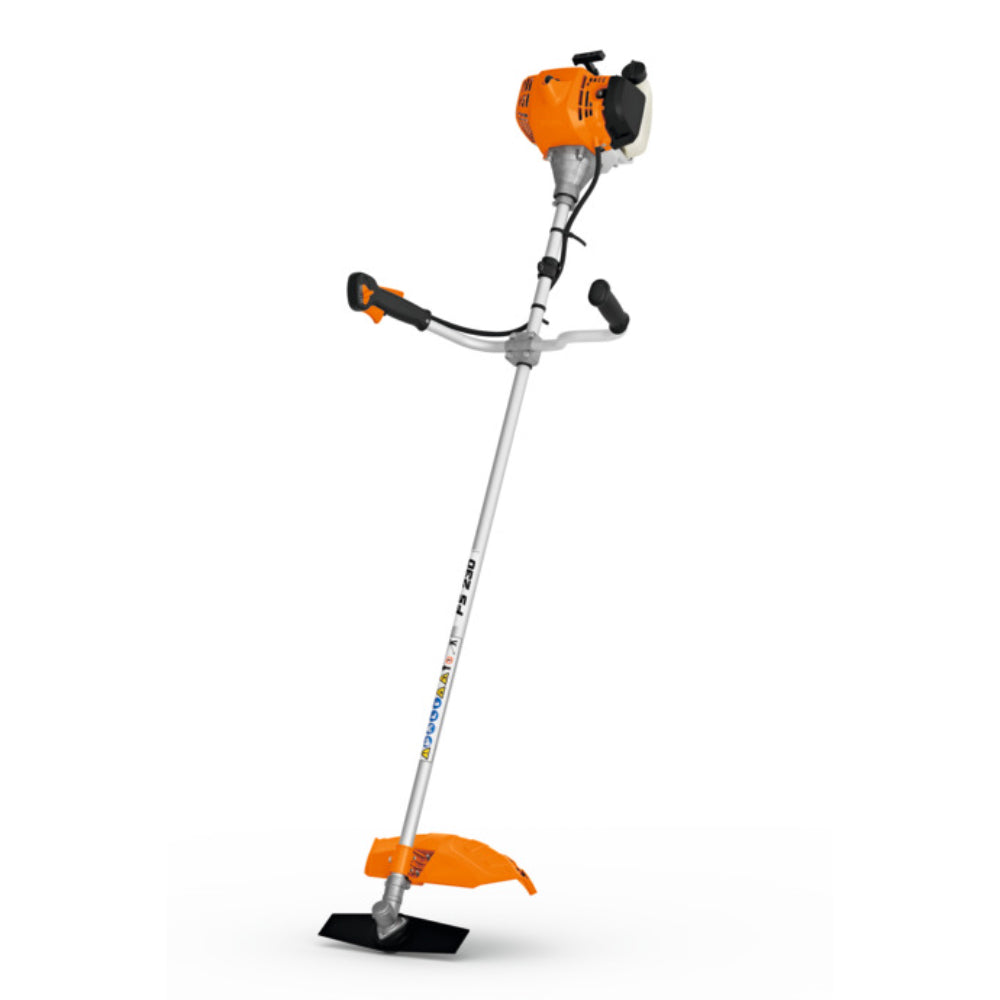

FS 230 Brushcutter with Autocut & 2T Grass cutting blade

Engine Type 2-Stroke Petrol
Displacement 40.2 cm³
Power Output 1.55 kW (2.1 hp)
Max. Engine Speed 9 000 rpm
Idle Speed 2 800 rpm
Fuel Tank Capacity 0.81 L
Weight (without cutting tool) 7.3 kg
Sound Pressure Level 98 dB(A)
Sound Power Level 112 dB(A)
Vibration Level (L/R) 6.5 / 5.5 m/s²
Total Length (no tool) 182 cm
Drive Shaft Solid straight shaft
Handle Type Adjustable bike handle with multi-function grip
Starting System Recoil starter
Cutting Attachments AutoCut® C 26-2 nylon head & 2-Tooth Grass Blade 305-2




Ergonomic Bike Handle

ERGONOMIC BIKE HANDLE

EFFORTLESS MOWING OF LARGE AREAS.
The ergonomic bike handle helps you mow large areas quickly and effortlessly, as this handle supports a natural brushcutter movement. The bike handle is easy to adjust and secure.


Basic harness

Basic harness

For use with loop handle machines.



Goggles

Goggles

It is important to protect your eyes from flying particles and harmful UV radiation. Therefore a pair of safety goggles/glasses are supplied with the the machine. Note: Additional face protection must be worn when working with brushcutters.



Multi-function control handle

Multi-function control handle

Easy, comfortable thumb-operated control means the operator's hand never leaves the handle.



Manual fuel pump (Purger)

Manual fuel pump (Purger)

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.



STIHL ElastoStart

STIHL ElastoStart

STIHL ElastoStart is a special starter handle which ensures a smooth starting process without any sudden peak forces. The integral damper smooths the power profile that is generated during starting and makes the starting process a lot easier.



ADVANCE PLUS Universal harness

ADVANCE PLUS Universal harness

With a comfort carry ring for quickly attaching an removing the clearing saw.



STIHL ErgoStart (FT)

STIHL ErgoStart (FT)

STIHL ErgoStart cuts the effort required to start the tool by half, while the starter cord can be pulled at just one third of the normal force. A coil spring between the starter cord and the crankshaft smoothes out force peaks, making them virtually undetectable through the cord itself.
