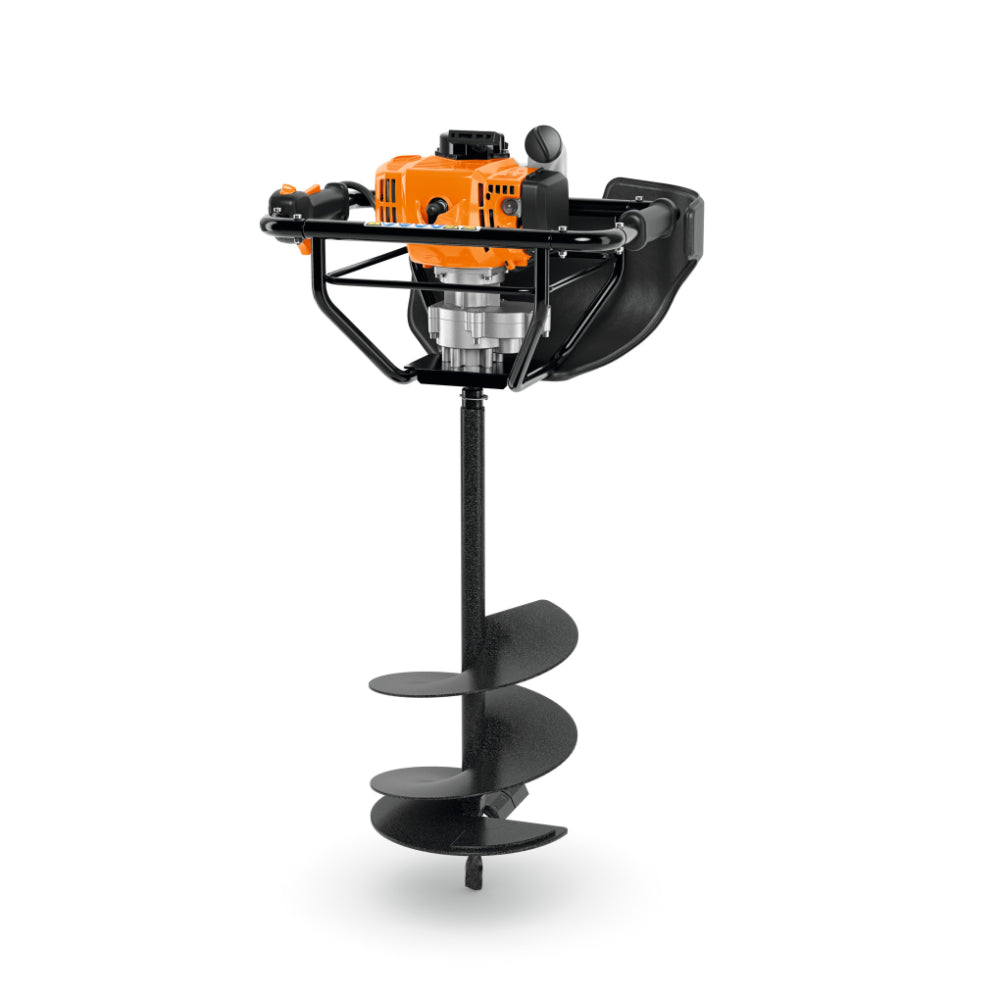

STIHL BT 230 Earth Auger-with drill bit

Type

Petrol

Capacity

40 CC

🎯 Universal Bit Fit – 20 mm connection accepts most commercial drill bits.
⚙️ Smooth Torque – Spur‑gear drive with STIHL lubricant for reliable power transfer.
🔄 High Speed – Up to 8 500 rpm for efficient soil penetration.
🪶 Lightweight – Only 10 kg (powerhead), minimizing operator fatigue.

Benefits

Faster Drilling: High power-to-weight ratio cuts hole time significantly.
Versatility: Supports 150–300 mm bits for fence posts, planting, or soil sampling.
Durability: Rugged spur‑gear drive and frame stand up to tough soils.

Whats App

Rs. 35,963.00

Get fastest delivery by 5-7 days

Get 18% GST on input

1 Year warranty

Cash On Delivery

Tax included.

Drill Bit Size: 150MM

150MM 200MM 300MM

Whats App

BT 230 Earth Auger-with drill bit

Parameter	Specification
Displacement	40.2 cc
Engine power	1.55 kW (2.1 HP)
Fuel tank capacity	0.81 L
Weight (powerhead only)	10.9 kg
Max. engine speed	8 500 rpm
Auger bit connection	20 mm standard
Compatible auger diameters	150 mm / 200 mm / 250 mm / 300 mm
Gearbox lubrication	STIHL gear lubricant
Drive type	Spur‑gear, grease‑lubricated
Starting system	Recoil starter
Typical drilling depth	Up to 300 mm (12″)

LARGE-AREA SUPPORT CUSHION

FOR GOOD CONTROL. With the large-area support cushion, you can guide your earth auger smoothly and precisely. The cushion fits comfortably against your body during drilling, providing optimal hold and good guidance.

4-MIX® engine

The 1.4 kW STIHL 4-MIX® engine combines the advantages of a two-stroke and a four-stroke engine - it is economical, smooth, responsive and powerful. It produces less emissions and doesn't need an oil service.

Long-life air filter system

Together with the compensator that is integrated into the carburettor, the long-life air filter system offers long cleaning intervals and reliable engine protection.

QUICKSTOP DRILL BRAKE

FOR SAFE WORK. The QuickStop drill brake stops the drill if your earth auger gets stuck in the ground and causes the trigger lever to hit your thigh. The braking device ensures that the engine no longer transmits its force to the drill element, while the engine and drill element remain coupled. This means that you can simply unscrew the jammed drill in an anti-clockwise direction.

Vibration dampening frame

The vibration-dampening frame with four vibration elements provides comfortable working and reduces fatigue when drilling. The engine is positioned separately from the handle frame, allowing easier working over longer periods.

Multi-function handle

All operating elements for the engine control are integrated into the right-hand handle, enabling the drill to be operated by finger pressure. The hand always remains in a working position. BT 131 Earth Auger

FAQs

What is the engine capacity of the BT 230 Earth Auger?

The BT 230 Earth Auger is powered by a 72 CC 2-stroke petrol engine, offering high performance for heavy-duty drilling tasks.

What type of drill bit is included with the BT 230 Earth Auger?

The BT 230 comes with a durable auger drill bit designed for various applications such as fence posts, tree planting, and small foundation work. Additional bits of different sizes are available for specific tasks.

How deep can the BT 230 Earth Auger drill?

The BT 230 can drill holes up to a depth of approximately 1.5 to 2 meters, depending on the soil conditions and the auger bit used.

What fuel mixture does the BT 230 Earth Auger require?

The BT 230 operates on a 2-stroke petrol engine, which requires a fuel mixture of petrol and oil at the specified ratio outlined in the user manual.

What tasks is the BT 230 Earth Auger best suited for?

The BT 230 is designed for medium to heavy-duty tasks such as digging holes for larger fence posts, tree planting, utility poles, and foundation work in tougher soils like clay or rocky ground.

Is the BT 230 Earth Auger easy to operate?

Yes, the BT 230 is designed with user-friendly features including an ergonomic handle and an easy-start mechanism, making it comfortable and convenient to operate, even for extended periods.

What maintenance does the BT 230 Earth Auger require?

Regular maintenance includes checking and changing the fuel mixture, cleaning or replacing the air filter, inspecting the spark plug, and ensuring the auger bit is clear of debris and sharp for efficient drilling.
