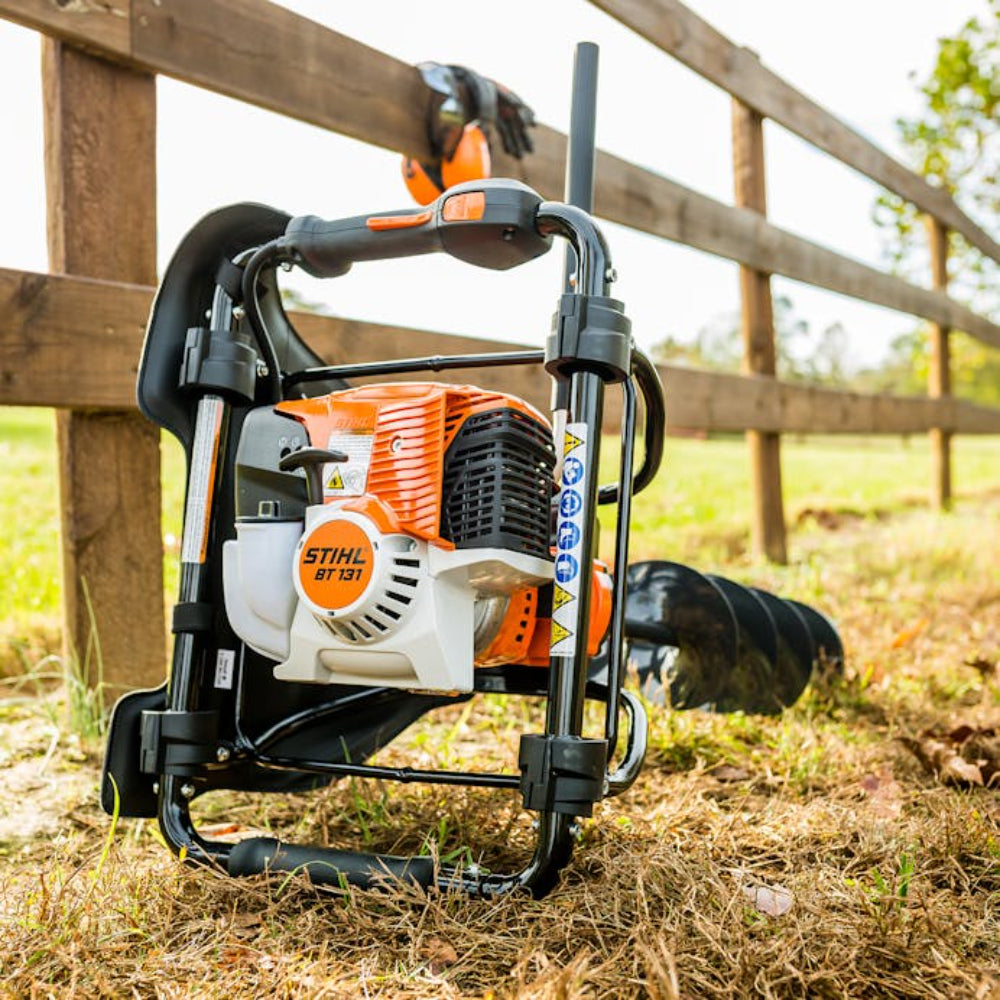

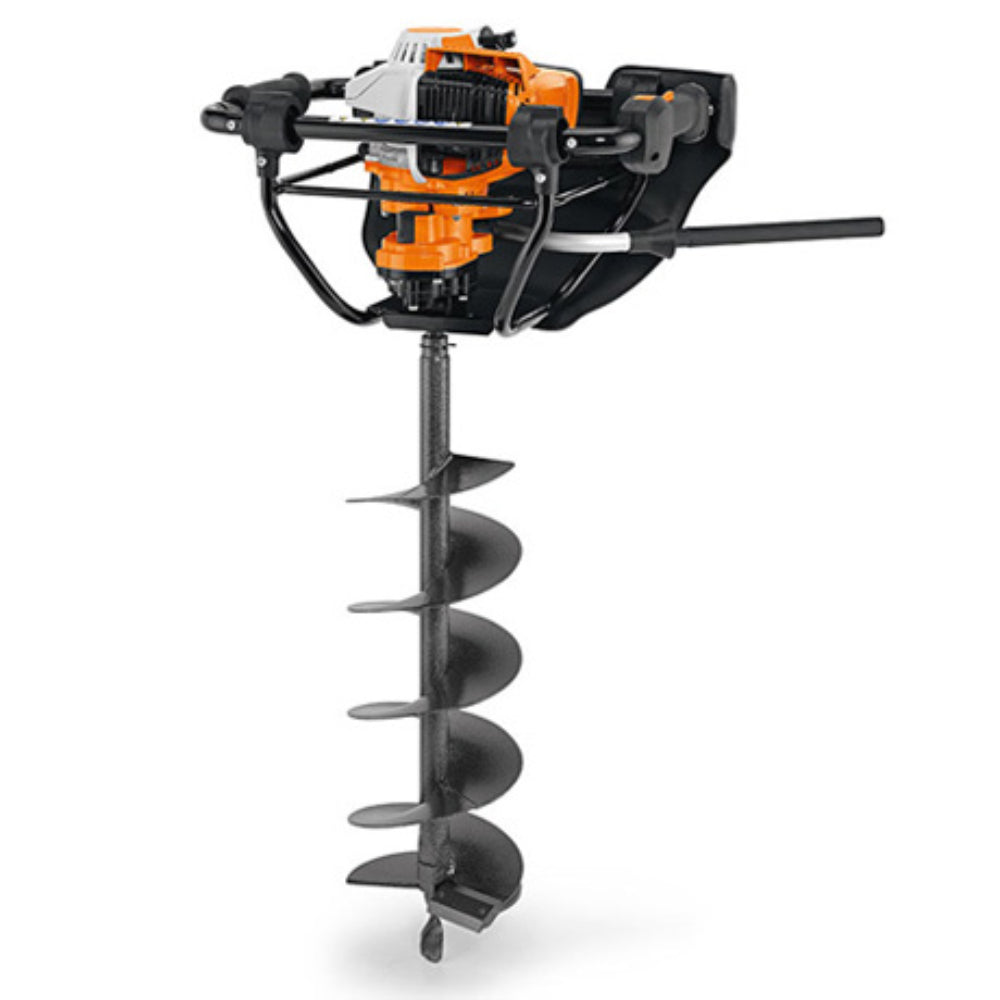

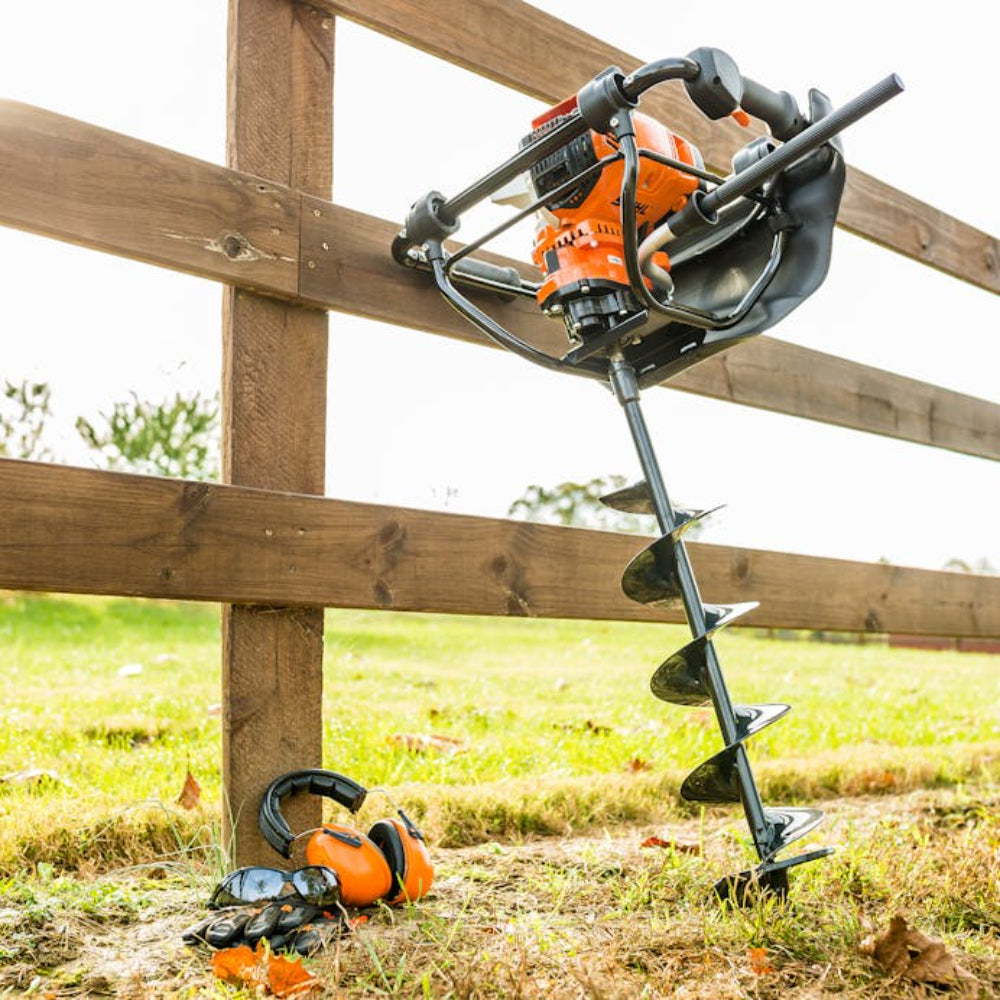

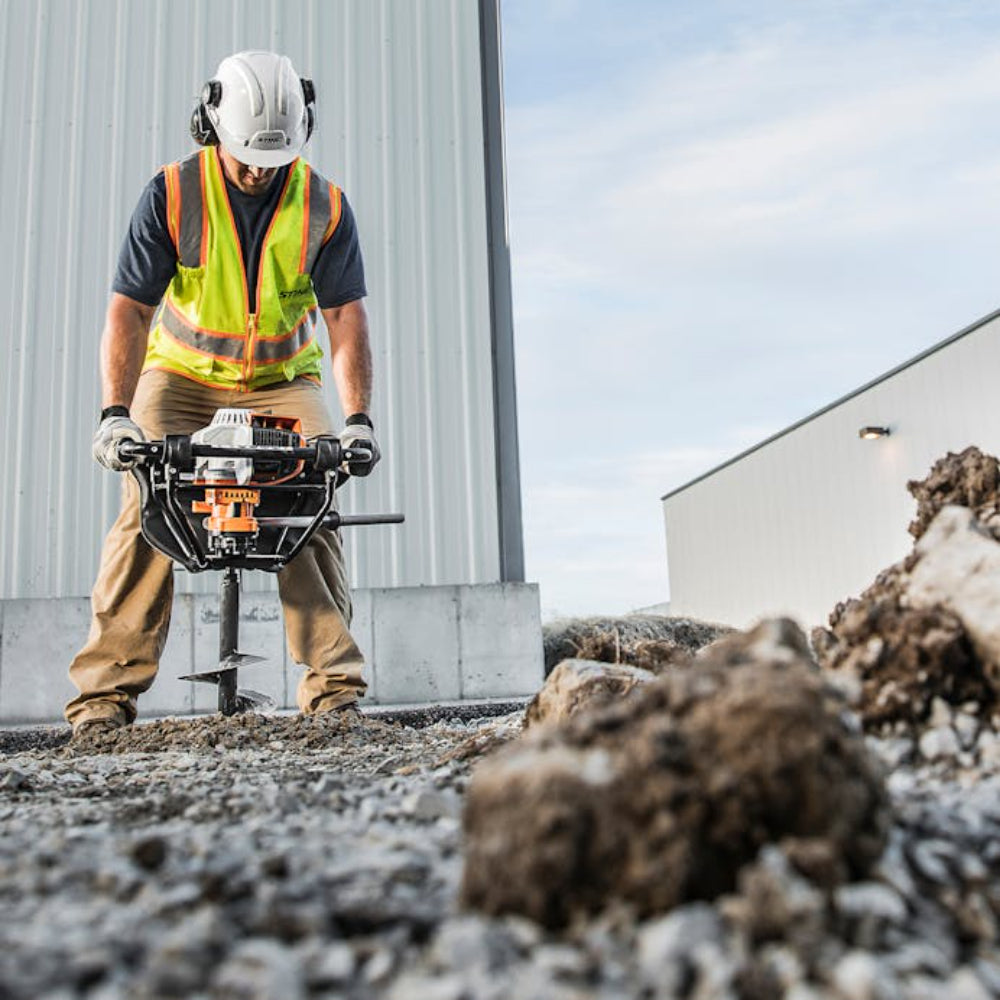

BT 131 Earth Auger-with Drill bit

Parameter Specification
Engine displacement 36.3 cc
Engine power 1.4 kW (1.9 bhp)
Torque (auger) 81 Nm (60 ft·lb)
Torque (engine) 1.7 Nm (1.25 ft·lb)
Drilling gear speed 200 rpm
Gear reduction ratio 47.5 : 1
Fuel tank capacity 0.71 L (24 oz)
Weight (powerhead only) 10 kg (22 lb)
Fuel system STIHL MotoMix (2‑stroke mixed lubrication)
Drive Spur gear, grease‑lubricated
Rotation direction Clockwise

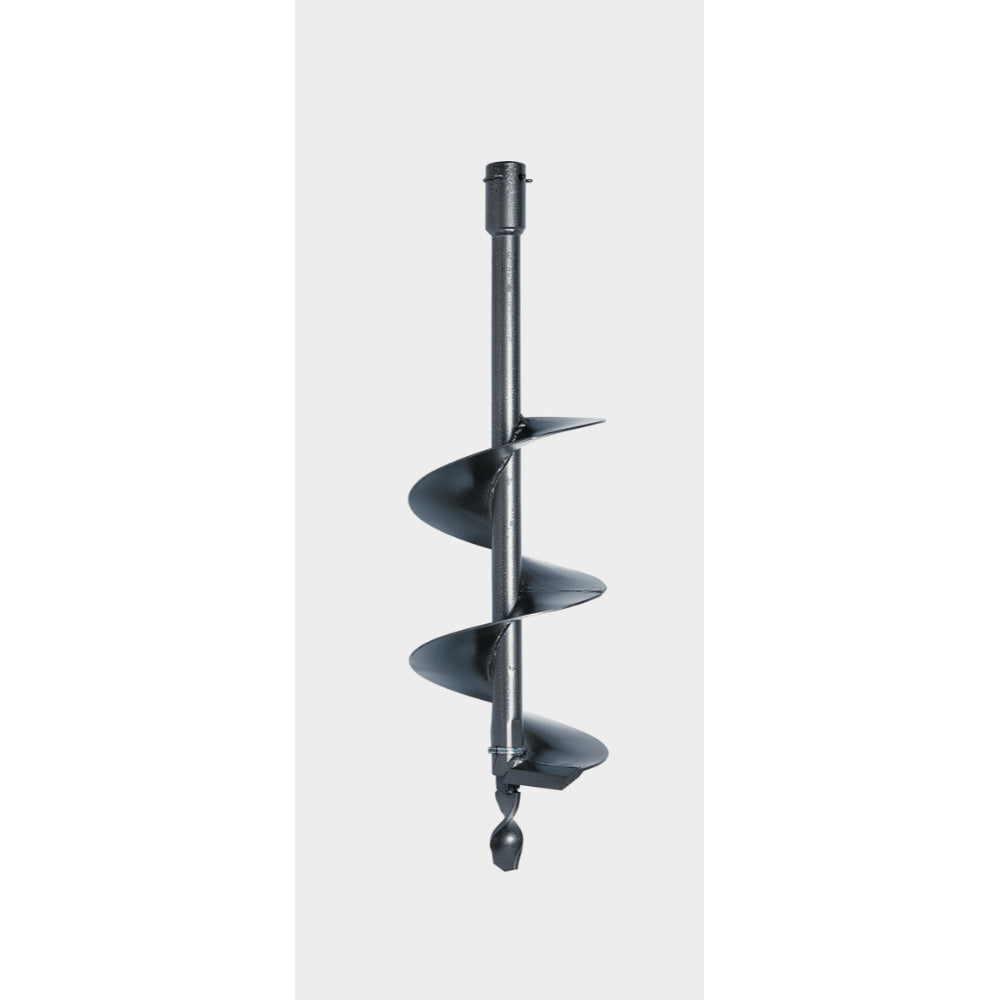

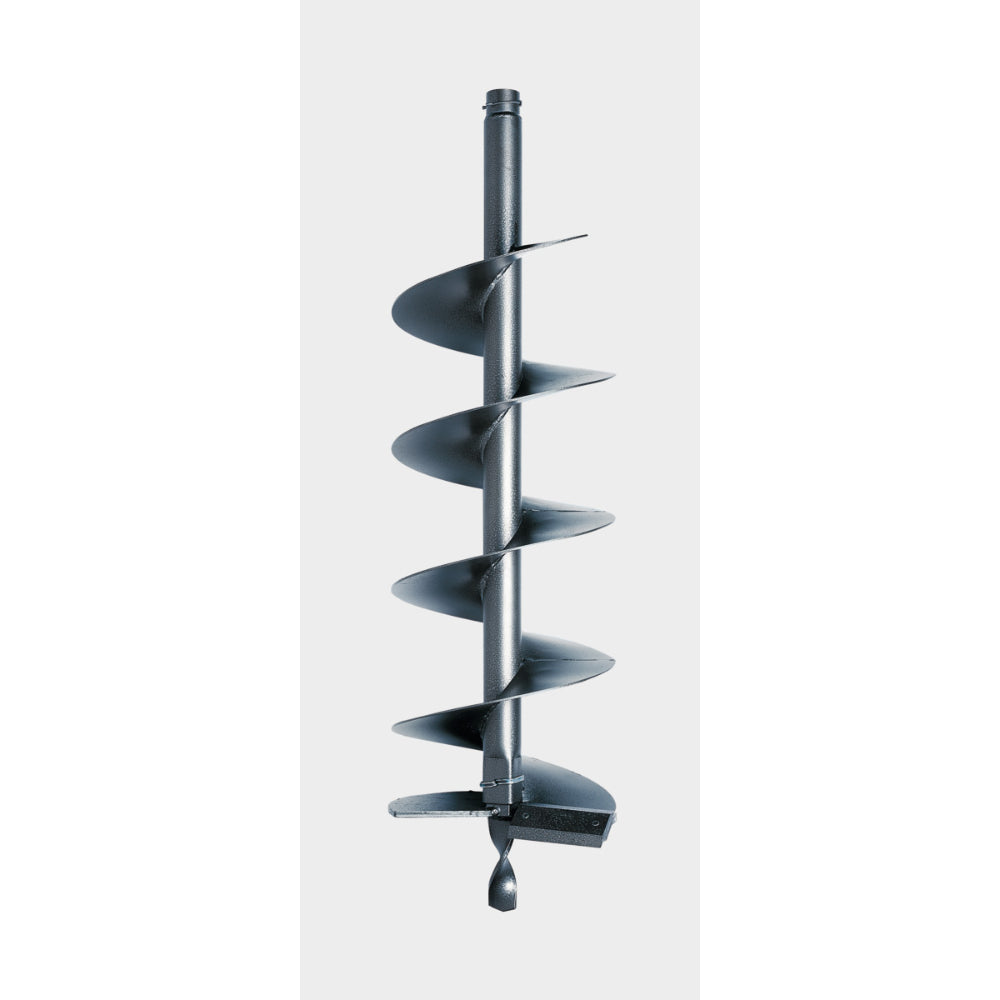

Auger bit diameter 60 / 80 / 100 / 150 / 200 mm
Standard digging depth 762 mm
Extension option Optional 500 mm extension

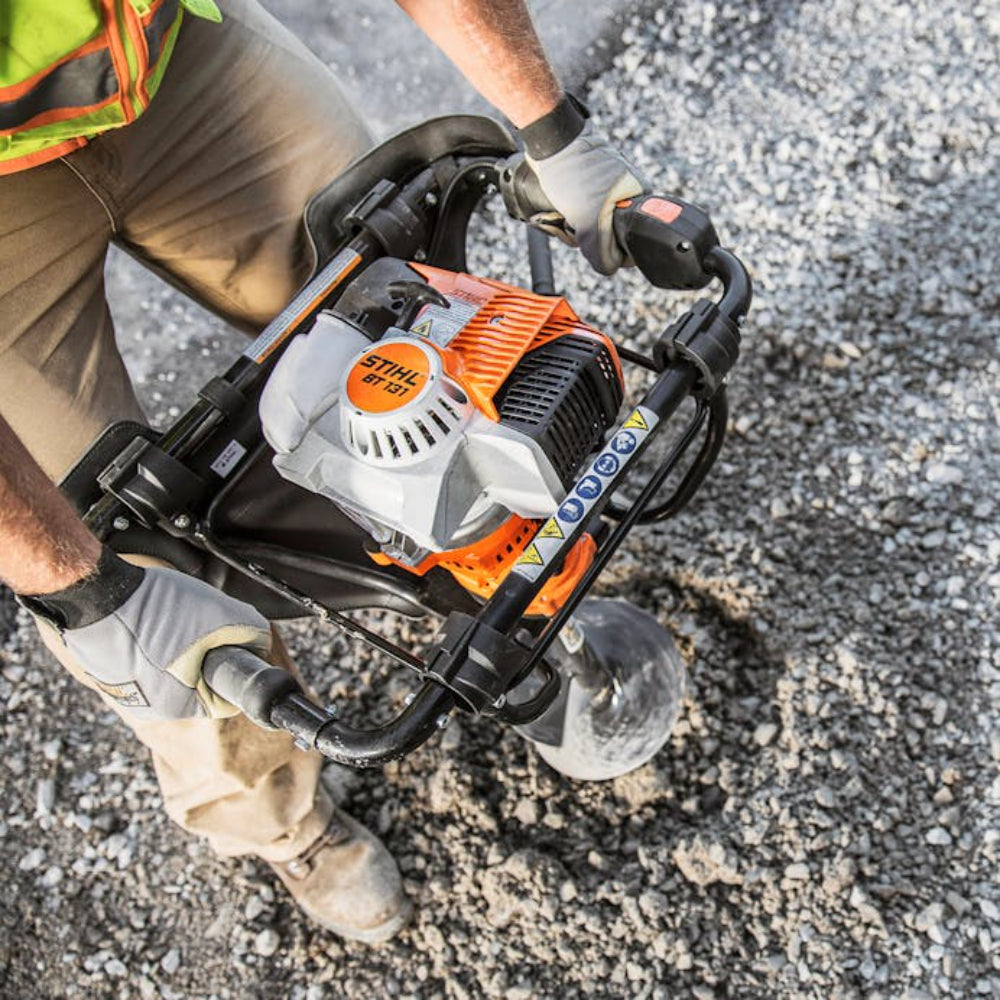

LARGE-AREA SUPPORT CUSHION



LARGE-AREA SUPPORT CUSHION

FOR GOOD CONTROL. With the large-area support cushion, you can guide your earth auger smoothly and precisely. The cushion fits comfortably against your body during drilling, providing optimal hold and good guidance.



4-MIX® engine



4-MIX® engine

The 1.4 kW STIHL 4-MIX® engine combines the advantages of a two-stroke and a four-stroke engine - it is economical, smooth, responsive and powerful. It produces less emissions and doesn't need an oil service.



Long-life air filter system



Long-life air filter system

Together with the compensator that is integrated into the carburettor, the long-life air filter system offers long cleaning intervals and reliable engine protection.



QUICKSTOP DRILL BRAKE



QUICKSTOP DRILL BRAKE

FOR SAFE WORK. The QuickStop drill brake stops the drill if your earth auger gets stuck in the ground and causes the trigger lever to hit your thigh. The braking device ensures that the engine no longer transmits its force to the drill element, while the engine and drill element remain coupled. This means that you can simply unscrew the jammed drill in an anti-clockwise direction.

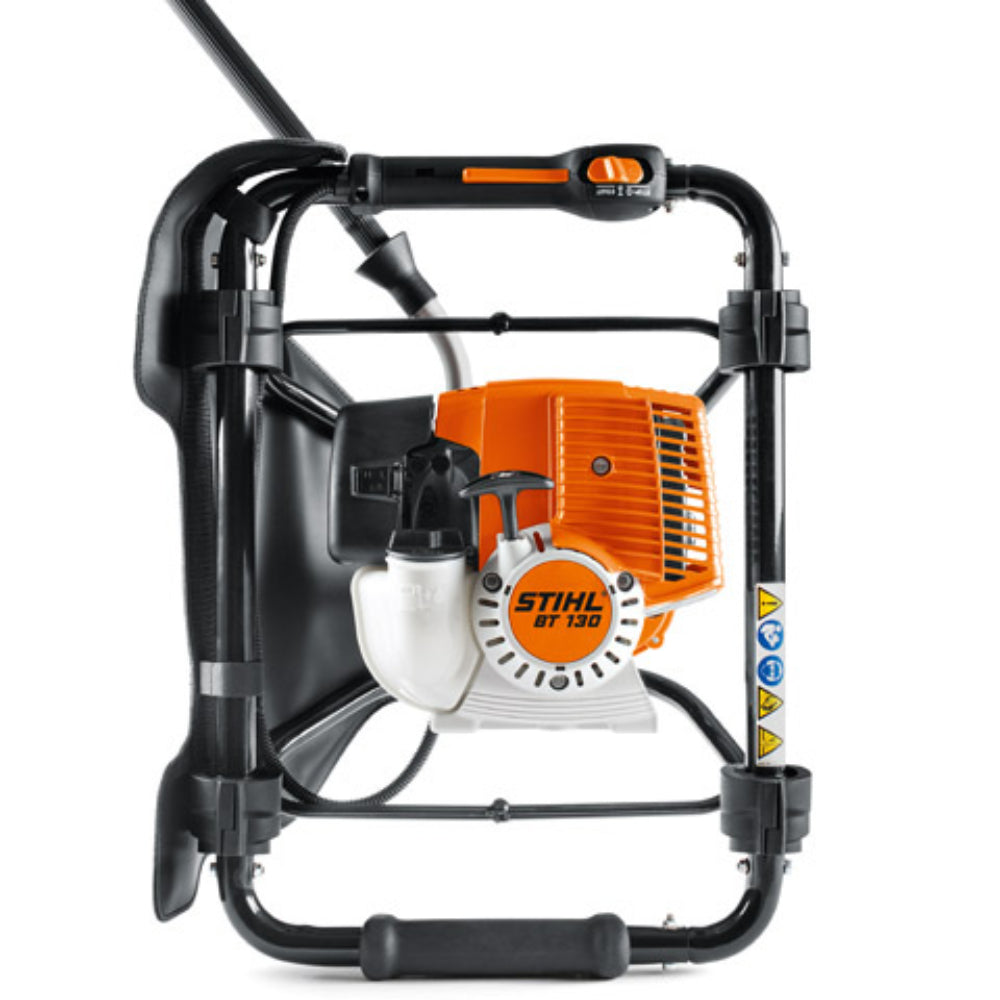

Vibration dampening frame



Vibration dampening frame

The vibration-dampening frame with four vibration elements provides comfortable working and reduces fatigue when drilling. The engine is positioned separately from the handle frame, allowing easier working over longer periods.

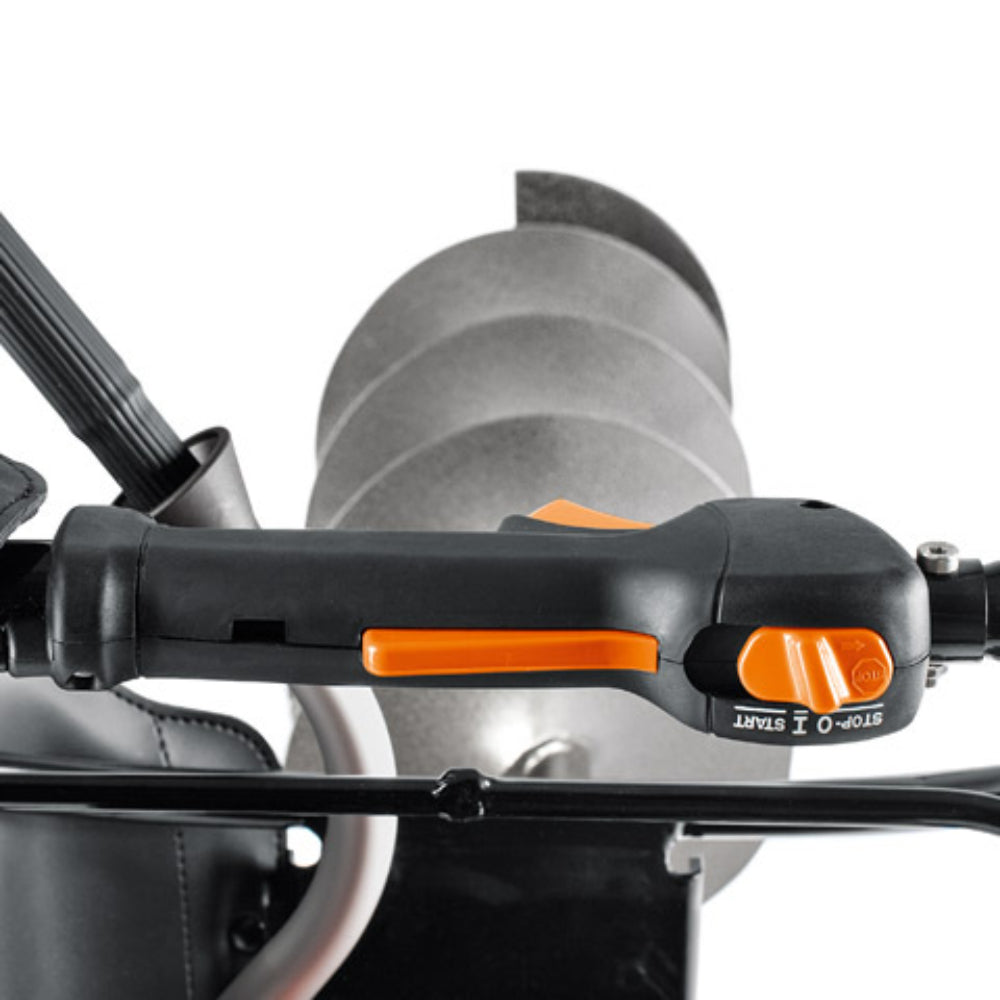

Multi-function handle



Multi-function handle

All operating elements for the engine control are integrated into the right-hand handle, enabling the drill to be operated by finger pressure. The hand always remains in a working position. BT 131 Earth Auger
