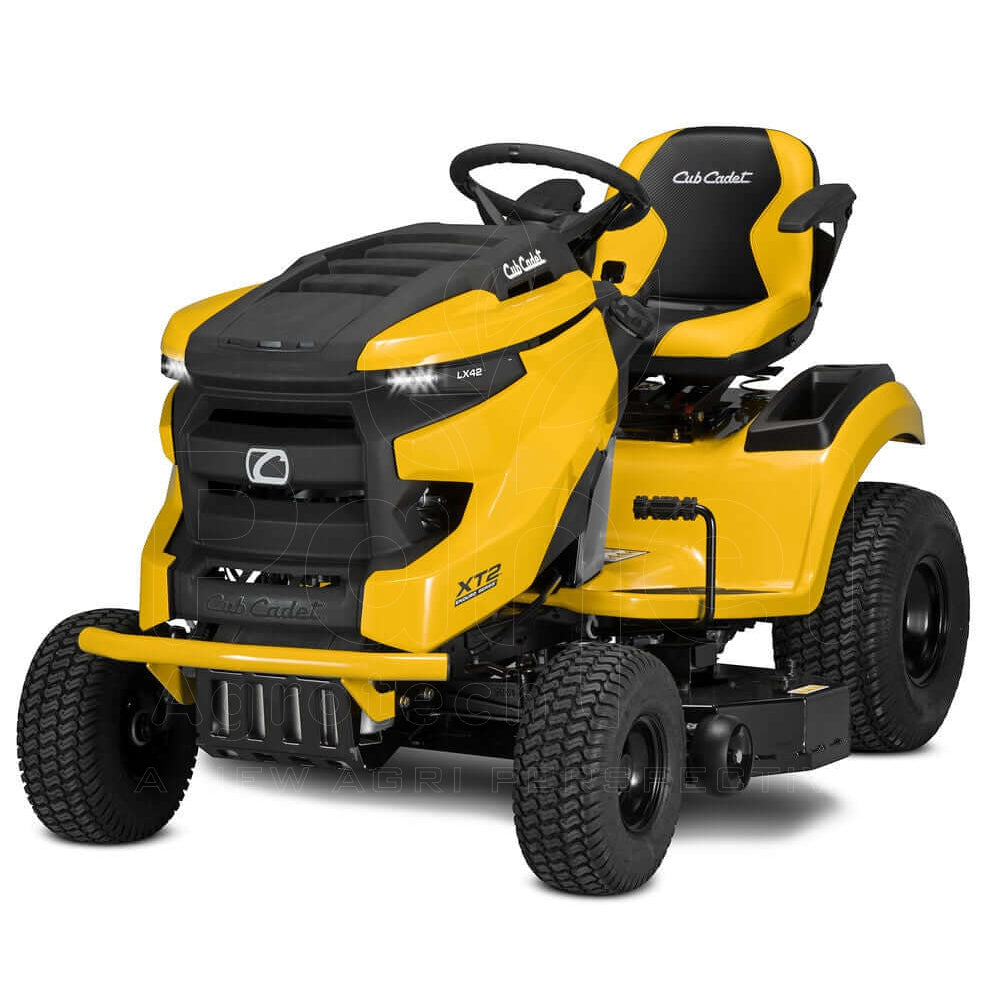

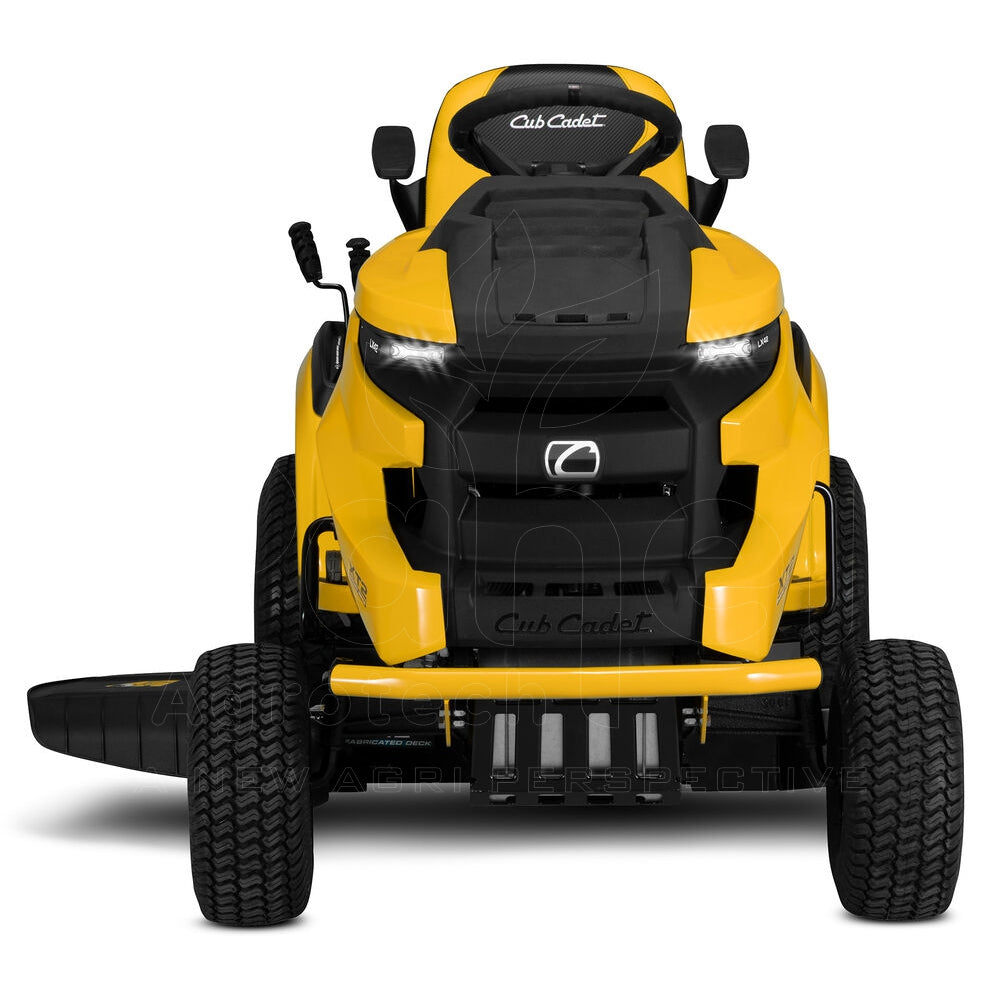

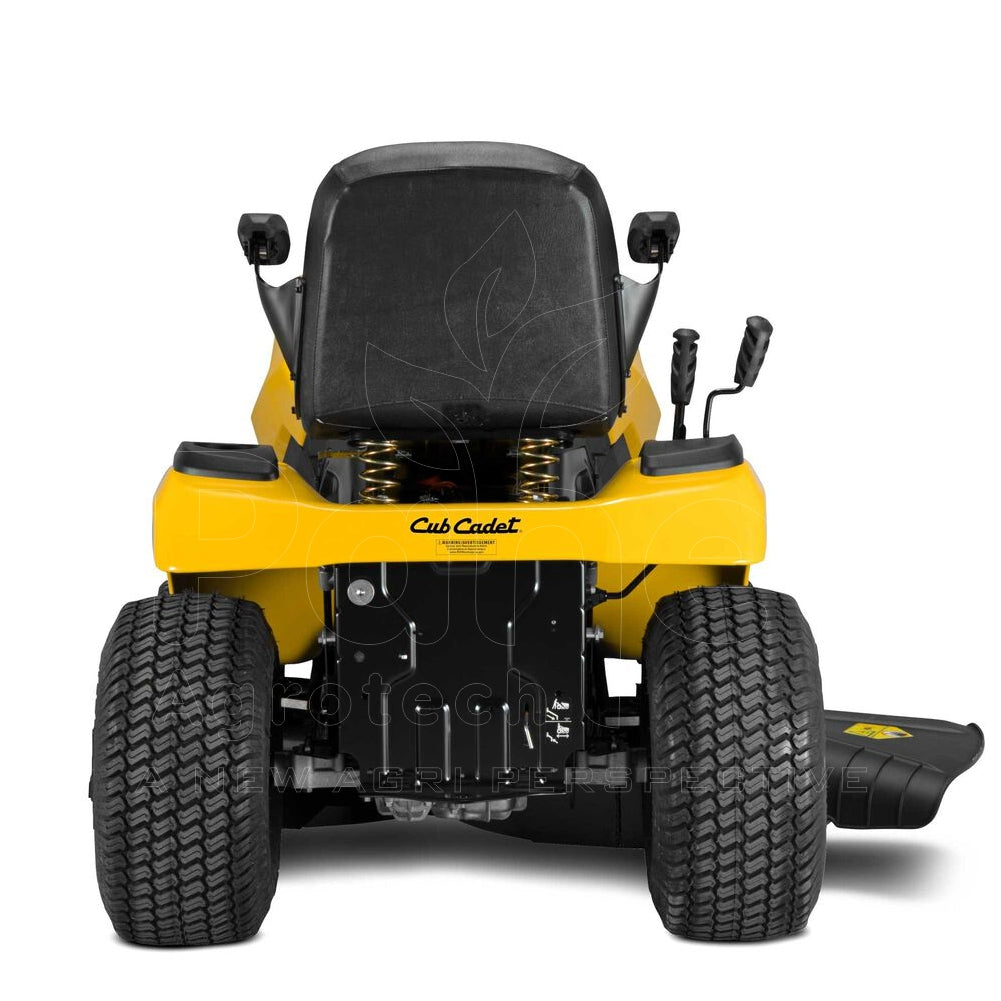

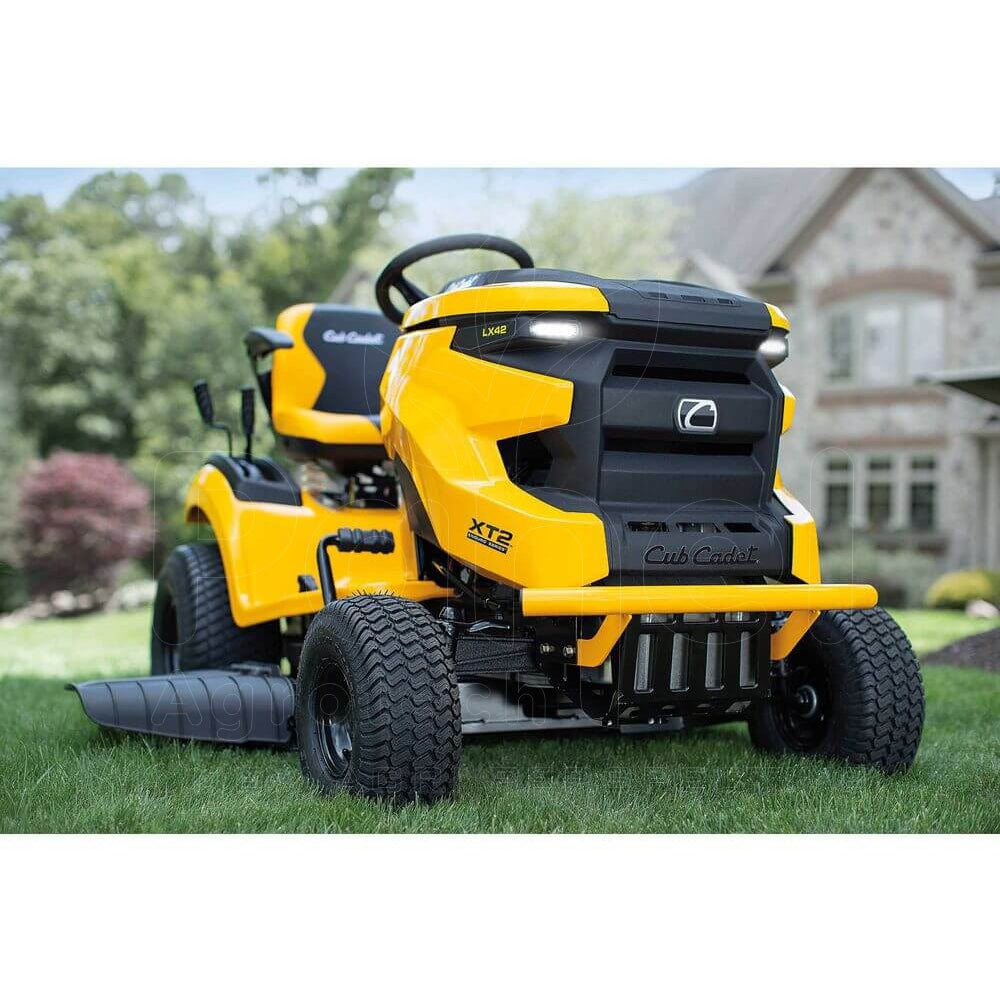

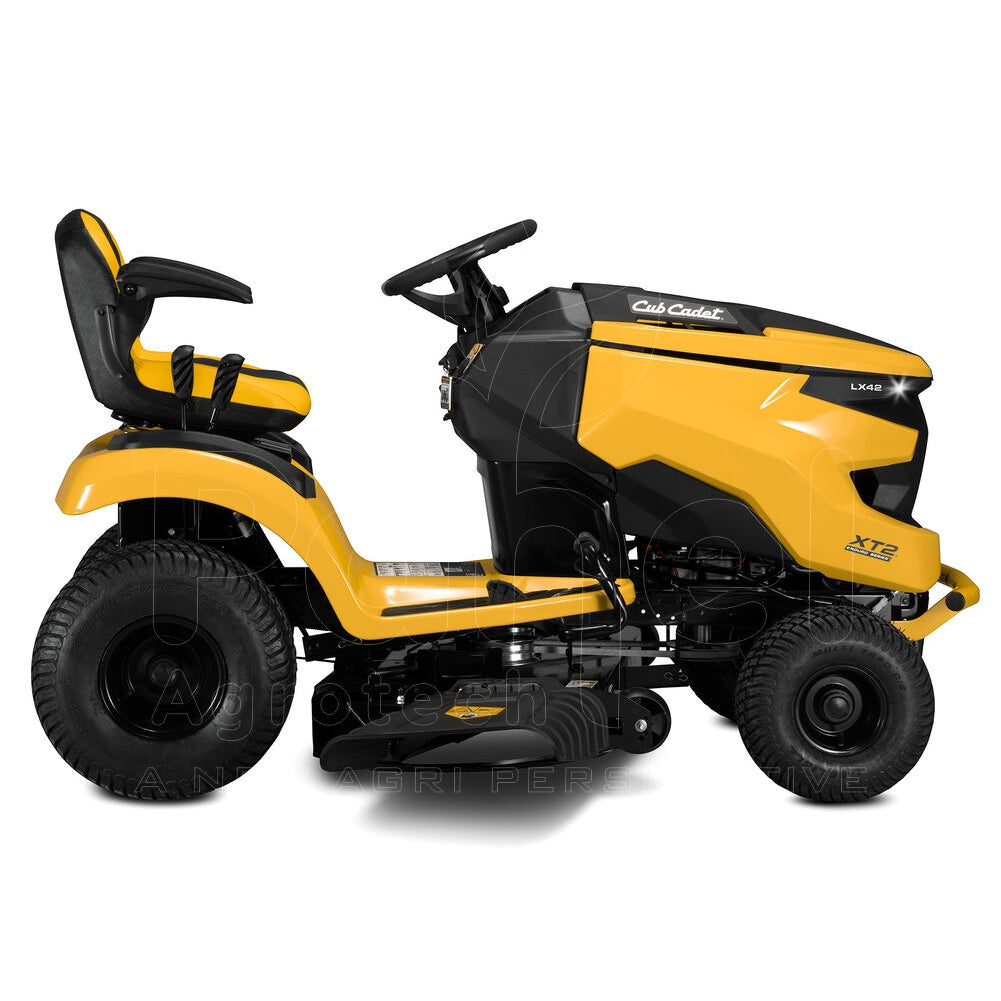

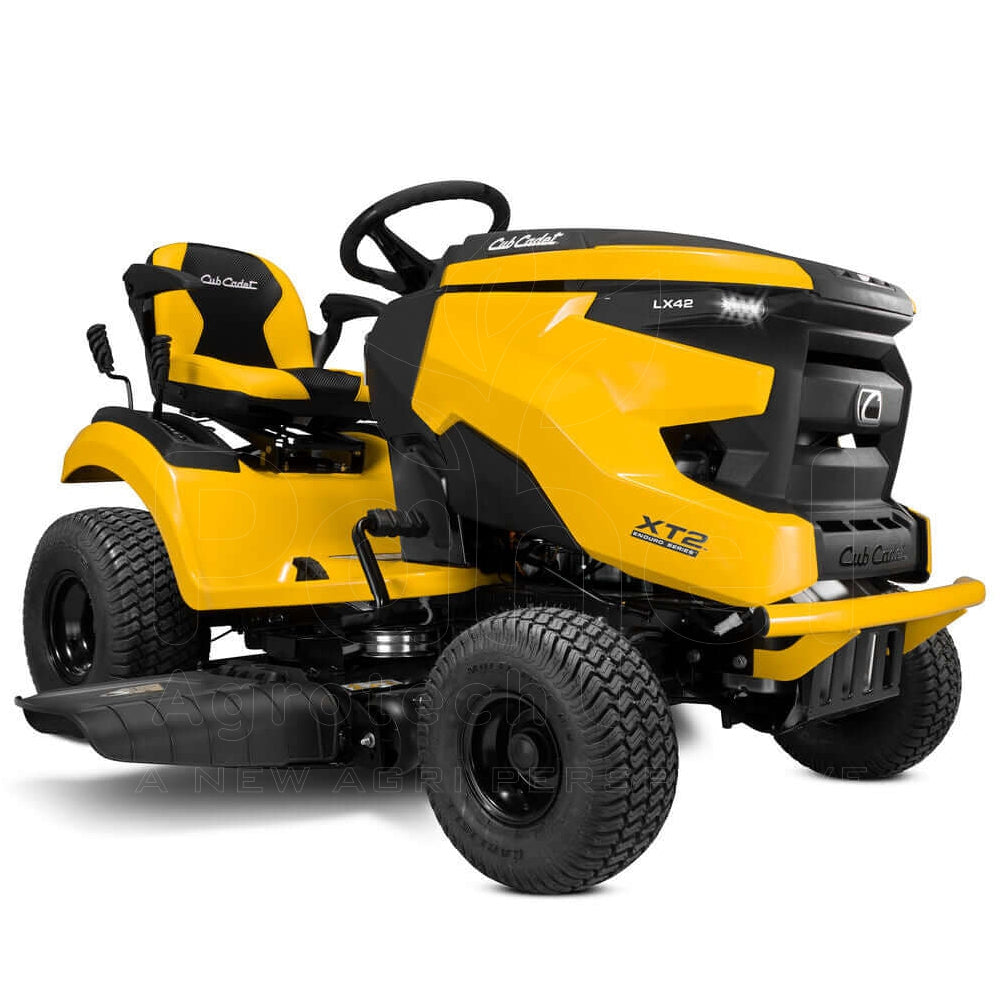

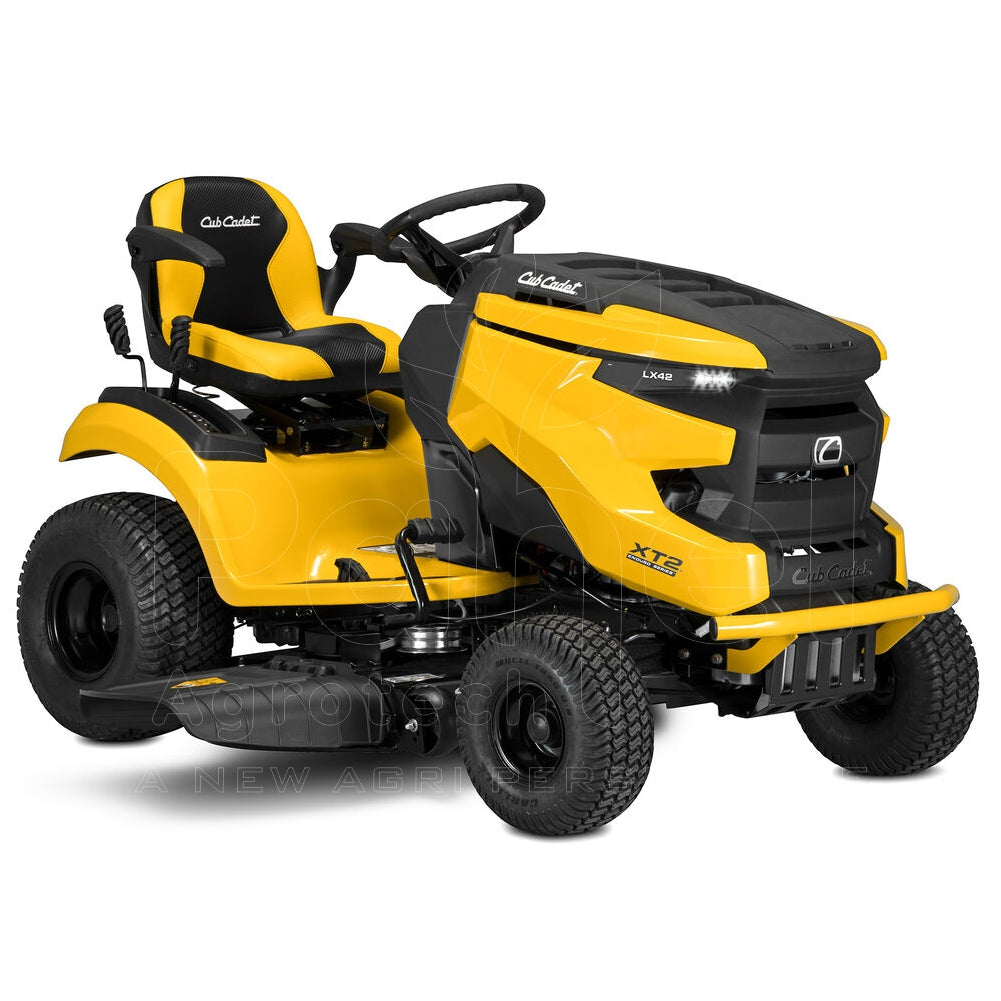

Cub Cadet XT2 LX 42″ Lawn Tractor

Engine

Engine Type 20 Hp Professional-Grade Kohler® 7000 Series V-Twin Ohv
Cylinder/Material Twin/Cast-Iron Sleeve
Lubrication Fully Pressurized Automotive-Style Oil Pump W/ Spin-On Oil Filter

Chassis

Hood Fully Pressurized Automotive-Style Oil Pump W/ Spin-On Oil Filter

Electrical System

Battery 300 Cold Crank Amps
Charging System Flywheel Alternator – 15 Amp Regulated
Headlights New Led High Illumination
System Monitor Packege Digitial Hour Meter/Service Minder, Oil, Battery, Brake And Pto Start Sequence
Cub Connect N/A

Operation

Pto Clutch Smooth Lever Engagement
Deck Lift Lever/12-Position/Spring Assisted

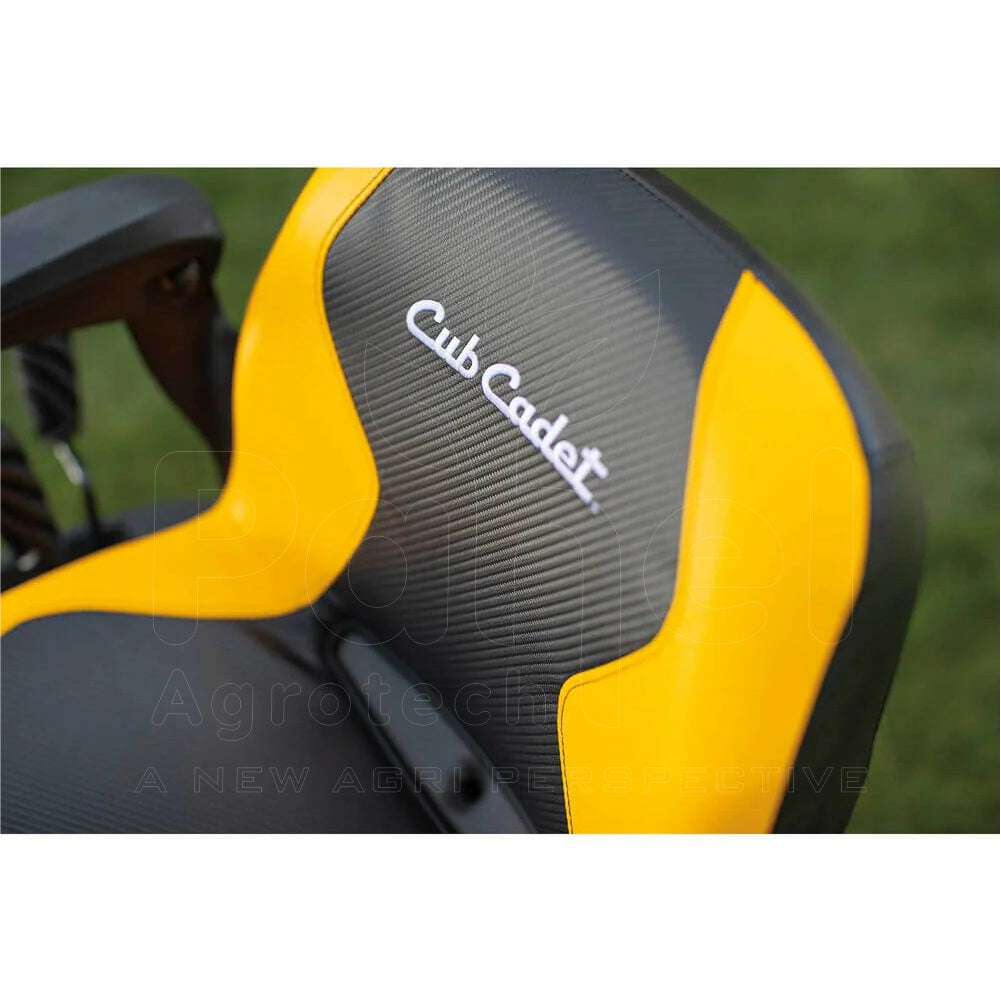

Seat New Cub Comfort™ High-Back Seat With 10 Degree Incline And Slide

Mower Deck

Deck Spindles 3/4″ With Steel Cap And Triple Lip Sealed
Deck Cutting Height  1″ – 4″
Deck Pulleys Split Steel Spindle Pulleys/Oversized Heavy-Duty Idlers
Mulch Kit Optional
Deck Atttach/Removal Quickattach™ (No Tools Required)
Anti-Scalping Wheels(Front/Rear) 2 Ball/2 Narrow
Deck Wash Patented Smartjet™ High-Pressure Deck Washing System
Cutting Width/Blades 42″/Twin Blades
Deck Construction Stamped

General

Safety Systems Neutral Start, Operator Presence, Reverse Safety Switch, Brake Pedal Lock, Revtek Reverse Mowing Technology

Additional Specifications

Tires (Front/Rear) 15″ X 6″ Ball Bearing/20″ X 8″
Tire Tread Multi Trac
Forward Speed 5.5 Mph
Reverse Speed 3.1 Mph
Fuel Tank Capacity 3 Gal. Easy Fill, Rustproof
Engine Oil Capacity 2 Qt.
Wheelbase 47″
Estimated Weight 580 Lbs.

Power System

Powertrain Tuff Torq® Foot-Controlled Hydrostatic Transmission (K46)
Rear Differential Lock N/A
Engine To Transmissiom Heavy-Duty Belt
Cruise Control Soft Touch Engagement
Transmission Housing Cast Aluminum

Frame

Frame Fully Robotically-Welded Frame With New E-Coating Corrosion Defense System (5-Year Limited Warranty)

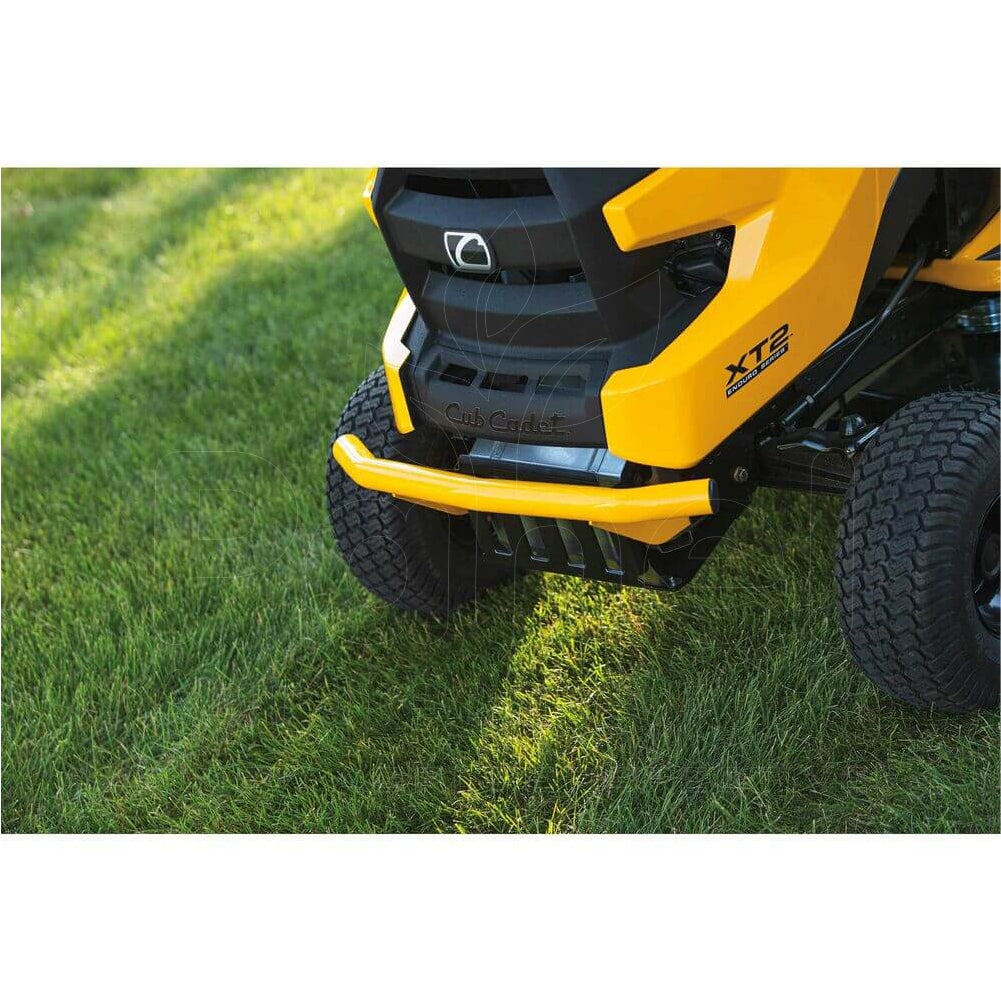

Bumper Single-Tube

Dimensions

Length/Width/Height 68″/50″/42.5″

Steering

Rear Axle 3/4″ W/Dual Pm Steel Drive Hubs
Steering/ Turning Radius New Optimized Steering System, Manual Sector And Pinion/16″
Front Pivot Bar Heavy-Duty Cast-Iron (5-Year Limited Warranty/Unlimited Hours)
Front Axles Heavy-Duty 3/4″ Through Machined Bushings
Ball Joints Fully-Adjustable/Automotive-Style

Controls

Brakes Automotive-Style Disc

Warranty

Warranty 3-Year Unlimited Hours (Includes Powertrain) & 5-Year Chassis & Front Axle Unlimited Hours/Limited Lifetime Fabricated Deck Shell
